Passenger's Airbag Module: Removal
CAUTION:

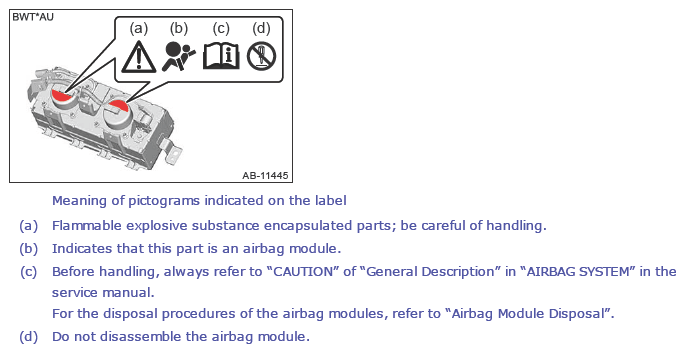

Before handling the airbag system components, refer to AIRBAG SYSTEM>General Description>CAUTION .
- Turn the ignition switch to OFF.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY
.NOTE:
- Release the shift lock and shift the select lever to the "N" position. Refer to CONTROL SYSTEMS>Select Lever>REMOVAL .
- For the power seat model, remove the console box before removing the battery ground terminal.
- Remove the instrument panel assembly. Refer to EXTERIOR/INTERIOR TRIM>Instrument Panel Assembly>REMOVAL .
- Remove the tapping screws and release the claws, and remove the passenger's airbag module.
