Front impact sensor

CAUTION: Before handling the airbag system components, refer to AIRBAG SYSTEM>General Description>CAUTION .
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the Front impact sensor.

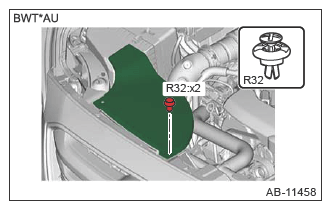

    1. Remove the clips and remove the air intake duct (rear). (When removing the sensor RH)
      G13622693Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the bolt, and then remove Front impact sensor.
    3. Disconnect the Front impact sensor connector. Refer to AIRBAG SYSTEM>Airbag Connector>PROCEDURE>EACH IMPACT SENSOR .
      G13622694Courtesy of SUBARU OF AMERICA, INC.
      G13622695Courtesy of SUBARU OF AMERICA, INC.
