Side Airbag Module

CAUTION: Do not reuse mounting nuts.

NOTE: For operation procedures on side airbag module removal/installation, refer to Seat Cushion Airbag Module .

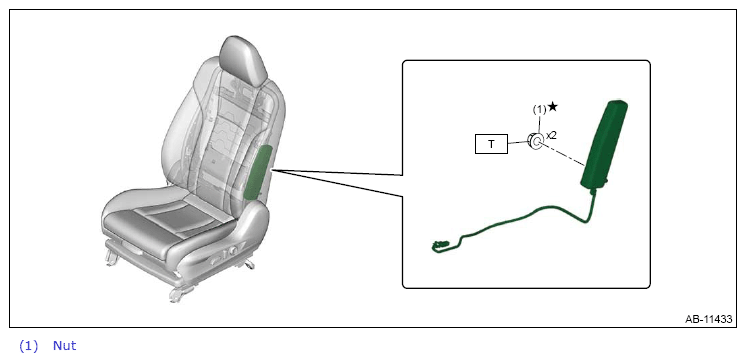

Fig 1: Side Airbag Module Component (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6 (0.6, 4.4)
