Components With Torque Specifications: Notes

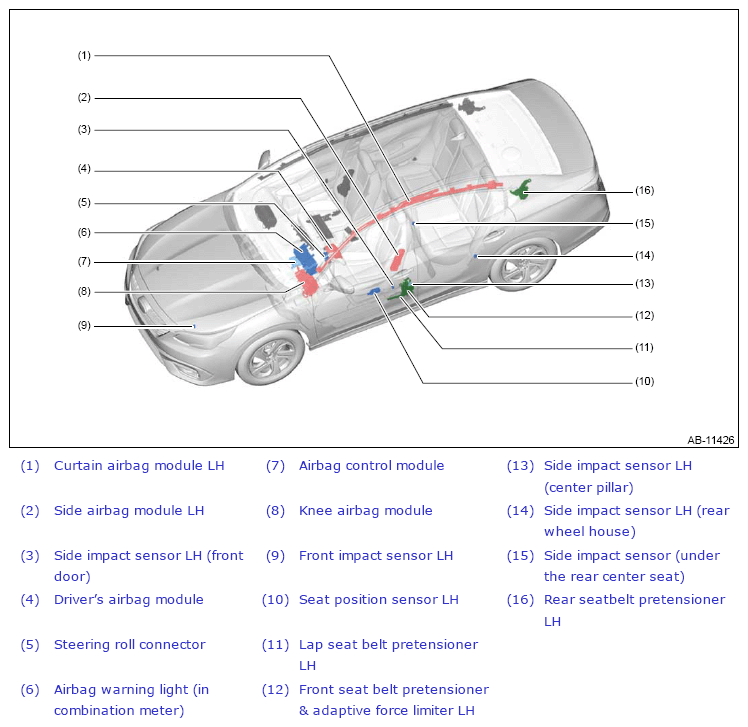

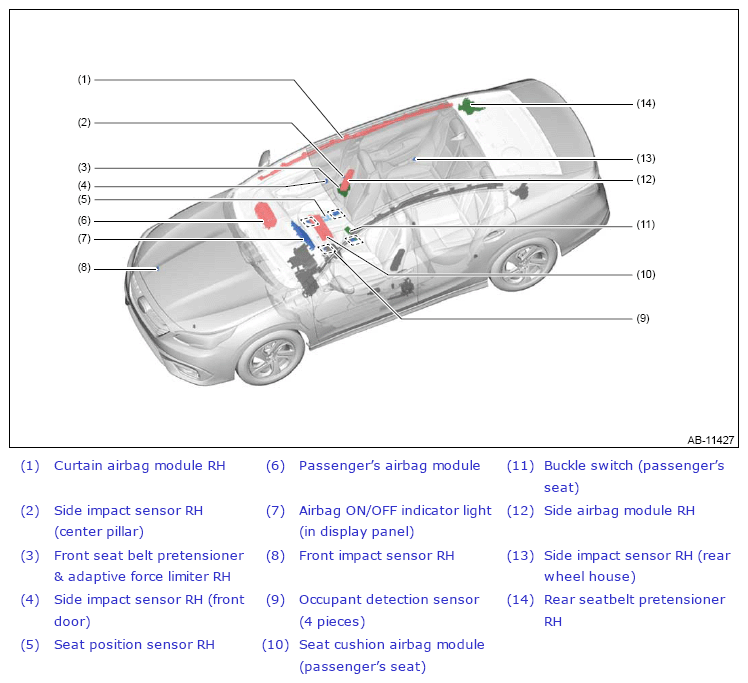

• Sedan model

  Courtesy of SUBARU OF AMERICA, INC.

  Courtesy of SUBARU OF AMERICA, INC.

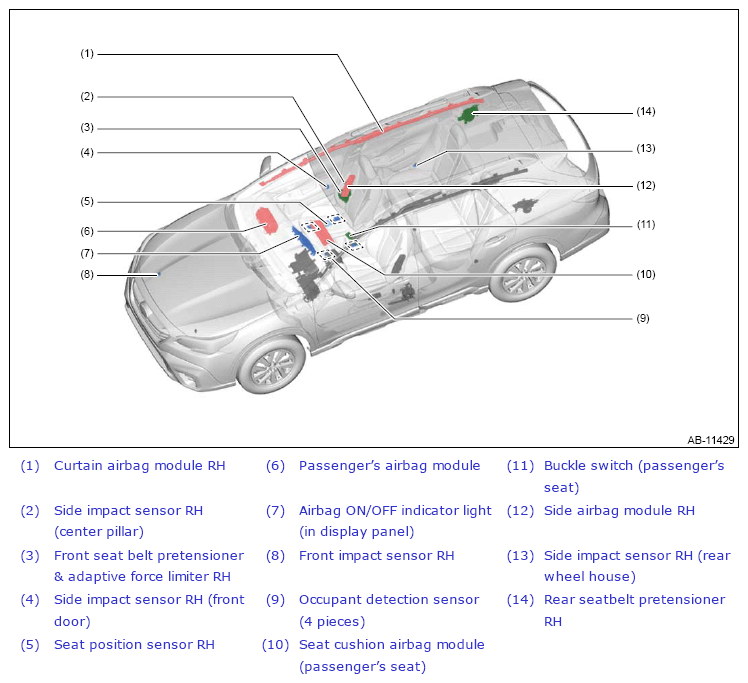

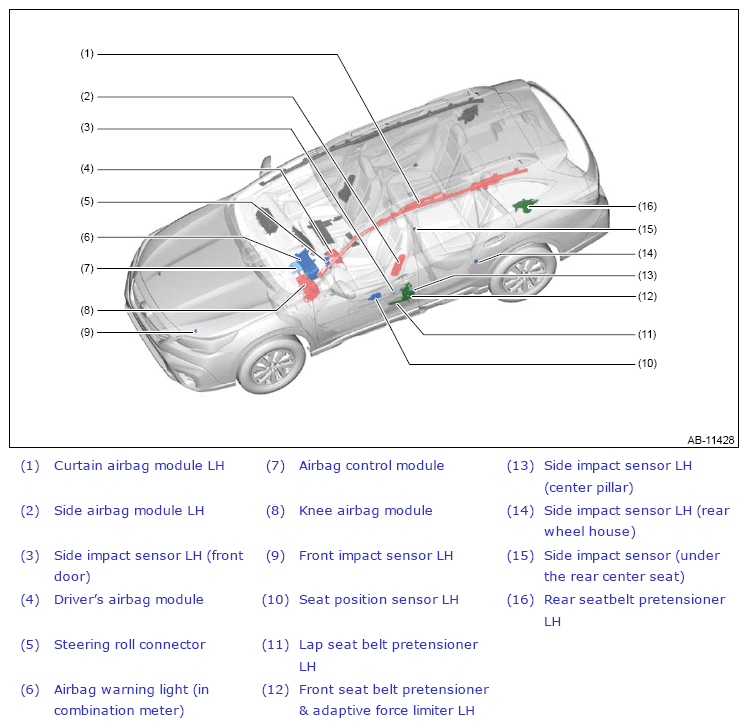

• OUTBACK model

  Courtesy of SUBARU OF AMERICA, INC.

  Courtesy of SUBARU OF AMERICA, INC.

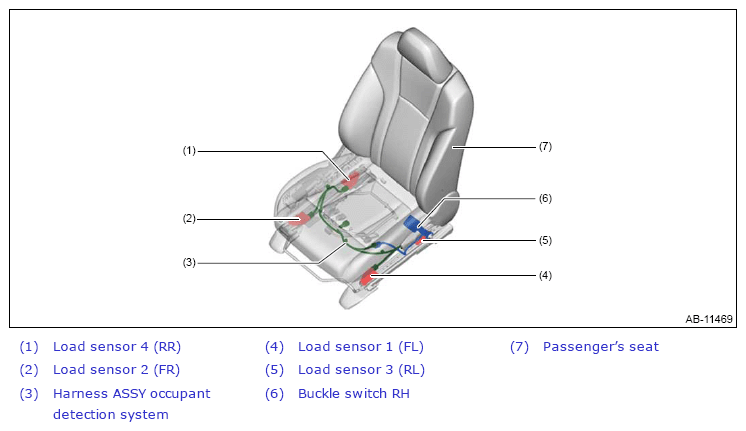

• Occupant detection sensor

  Courtesy of SUBARU OF AMERICA, INC.

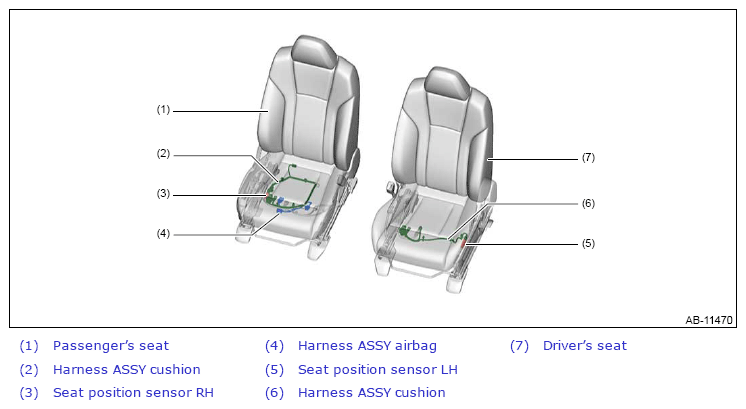

• Seat position sensor

  Courtesy of SUBARU OF AMERICA, INC.
