Front Reduction Drive Gear: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the front reduction driven gear shim (rear side).
    G13622367Courtesy of SUBARU OF AMERICA, INC.
  2. Install the front reduction drive gear and front reduction driven gear as a single unit.

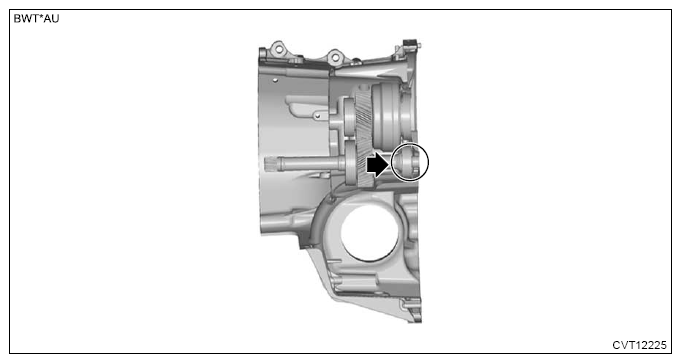

    NOTE: Make sure that the ball bearing (rear side) of the front reduction driven gear is fully in contact with the converter case.
    G13622369Courtesy of SUBARU OF AMERICA, INC.
    G13622366Courtesy of SUBARU OF AMERICA, INC.
  3. Install the converter case cover. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Converter Case Cover>INSTALLATION .
