Section 8 (Engine Intake System (Induction) And Turbocharger (2.4L)): Intercooler: Removal

WARNING: This page is about a different variant/trim than selected.

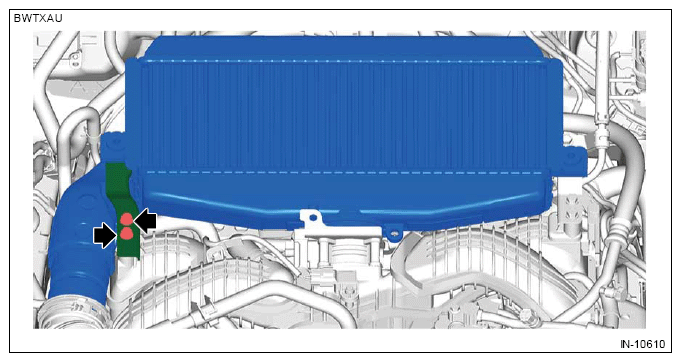

Release the spring lock of the intake duct No. 2.
NOTE: Move the both ends of the spring to the cut outs of the intake duct No. 2 using a flat tip screwdriver wrapped with protection tape.

Courtesy of SUBARU OF AMERICA, INC.

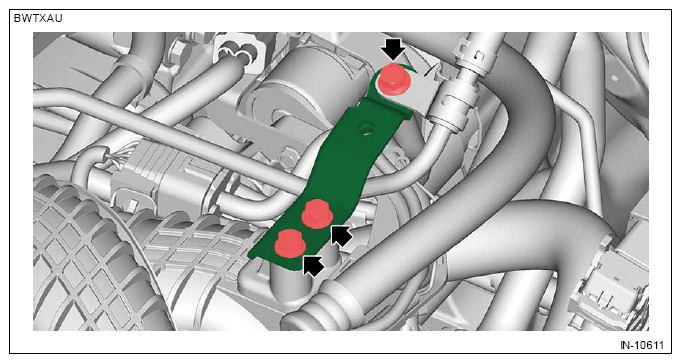

Remove the bolts securing the intercooler from the throttle body stay, intercooler stay RH and intercooler stay LH.

Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler stay RH from the intake manifold assembly and remove the intercooler and intake duct No. 3 as a unit.

Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure the vacuum pipe assembly stay to the intercooler stay LH, and remove the intercooler stay LH from the intake manifold assembly.

Courtesy of SUBARU OF AMERICA, INC.
