Components With Torque Specifications: INTERCOOLER

WARNING: This page is about a different variant/trim than selected.

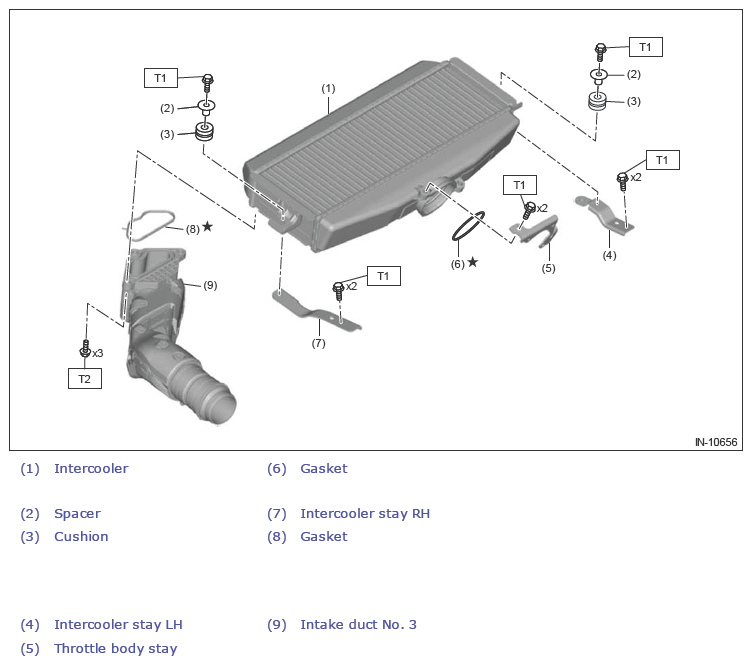

Fig 1: Intercooler Components (With Torque Specification)
G13619969Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2:  Refer to INTAKE (INDUCTION) (H4DOTC)>Intercooler>ASSEMBLY .
