Engine Side

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant. Refer to COOLING (H4DOTC)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  3. Remove the center exhaust pipe (front). Refer to EXHAUST (H4DOTC)>Center Exhaust Pipe>REMOVAL>CENTER EXHAUST PIPE (FRONT) .
  4. Disconnect radiator outlet hose.
    G13620551Courtesy of SUBARU OF AMERICA, INC.

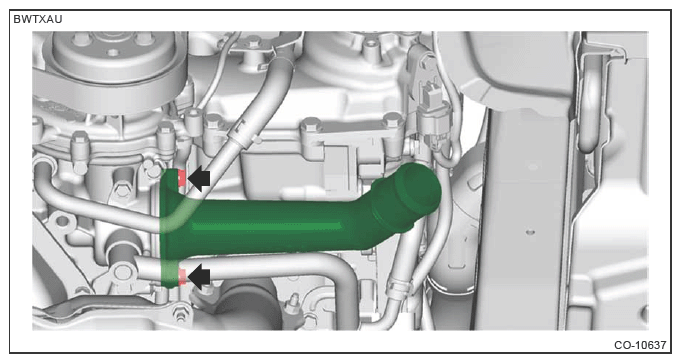

  5. Remove the thermostat cover, and then remove the thermostat.
    G13620552Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the gasket from thermostat.
