Radiator Fan and Fan Motor Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

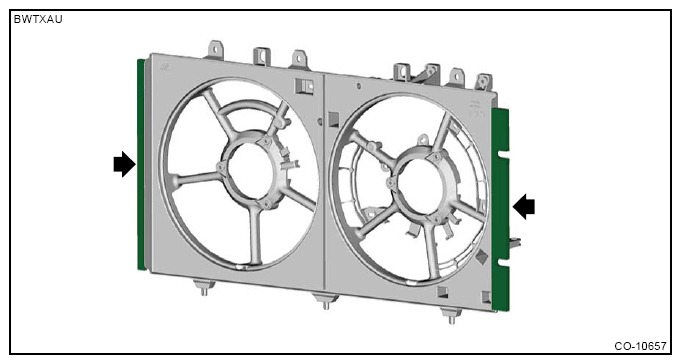

Install new radiator fan shroud gasket LH and radiator fan shroud gasket RH.

Courtesy of SUBARU OF AMERICA, INC.

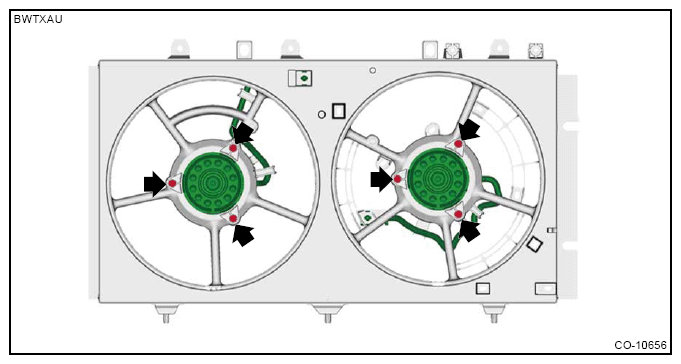

Install the main fan motor and the sub fan motor.
Tightening torque:

4 N.m (0.4 kgf-m, 3.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

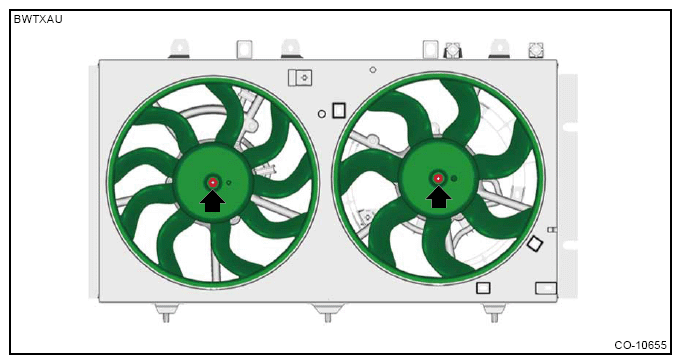

Install the radiator main fan and the radiator sub fan.
CAUTION:
- Always use new nuts (with locking agent).
- Nuts with reverse threads are used for securing radiator main fan and radiator sub fan. Therefore, rotate them in the Counter clockwise direction when installing.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

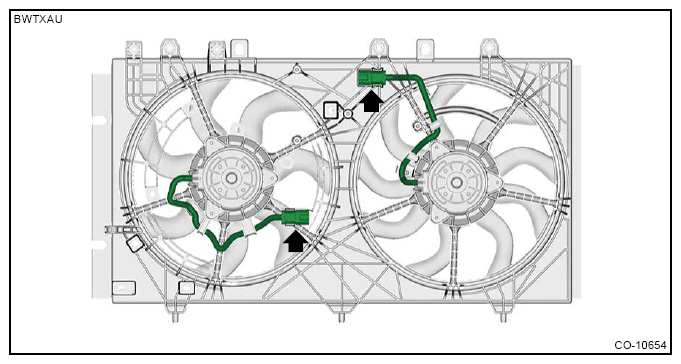

Install the main fan motor harness and the sub fan motor harness.

Courtesy of SUBARU OF AMERICA, INC.

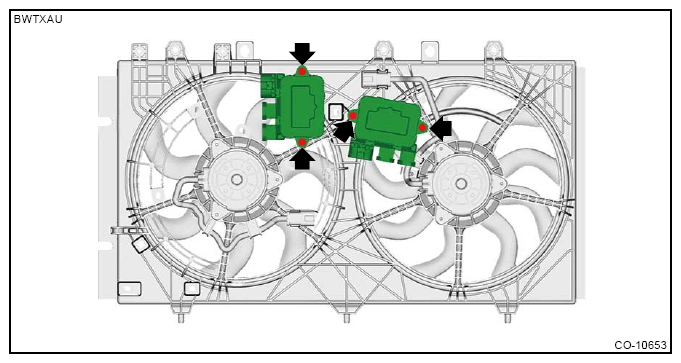

Install each radiator fan control module.
Tightening torque:

3.8 N.m (0.4 kgf-m, 2.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

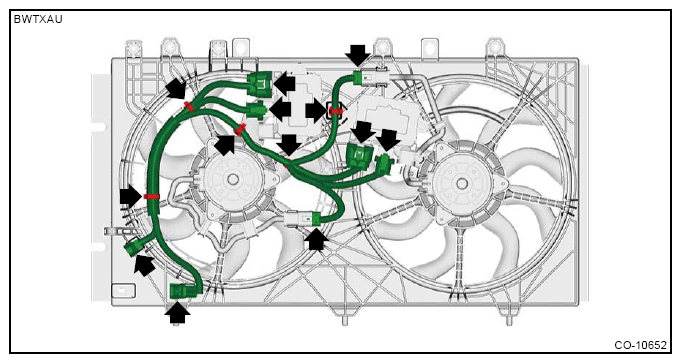

Install the radiator fan harness.

Courtesy of SUBARU OF AMERICA, INC.
