Battery Cable Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal (A) and remove the ground cable from the clip (B).
  2. Disconnect the ground terminal (C) and remove the battery cable holder (D).
  3. Remove the battery cable assembly from the clip (E).
    G13620744Courtesy of SUBARU OF AMERICA, INC.

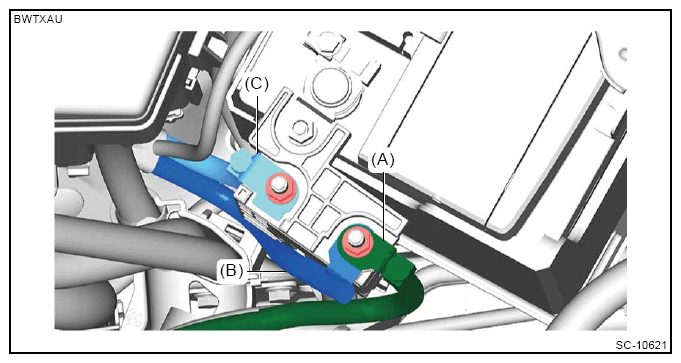

  4. Disconnect the terminal (A), terminal (B) and terminal (C).
    G13620745Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the slow blow fuse from the terminal base.
    G13619483Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the terminal of battery cable assembly from the terminal base.
    G13619467Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the terminal (A) and the terminal (B), and remove the slow blow fuse (C).
    NOTE: Perform this procedure only when required.
    G13620748Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the V-belt covers.
    G13619537Courtesy of SUBARU OF AMERICA, INC.

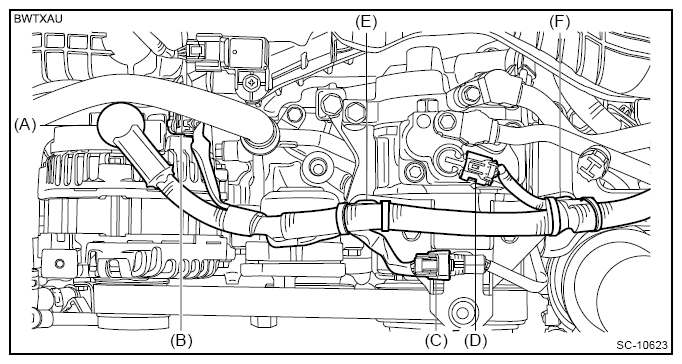

  9. Disconnect the terminal (A), connector (B), connector (C) and connector (D).
  10. Remove the clip (E) and clip (F) securing the battery cable assembly.
    G13620750Courtesy of SUBARU OF AMERICA, INC.
  11. Disconnect the terminal (A), ground terminal (B) and connector (C).
    CAUTION: In order to prevent damaging the ground terminal, fix the ground terminal when loosing the bolt, and avoid the part from rotating together while loosening the bolt.
  12. Remove the clip (D) securing battery cable assembly and release the claw (E).
    G13620751Courtesy of SUBARU OF AMERICA, INC.
  13. Disengage the claw securing the battery cable assembly to the bracket, and remove the battery cable assembly.
G13620752Courtesy of SUBARU OF AMERICA, INC.
