Section 2 (Engine Control System (Diagnostics) (2.4L) - Introduction)
>>
General Description
>>

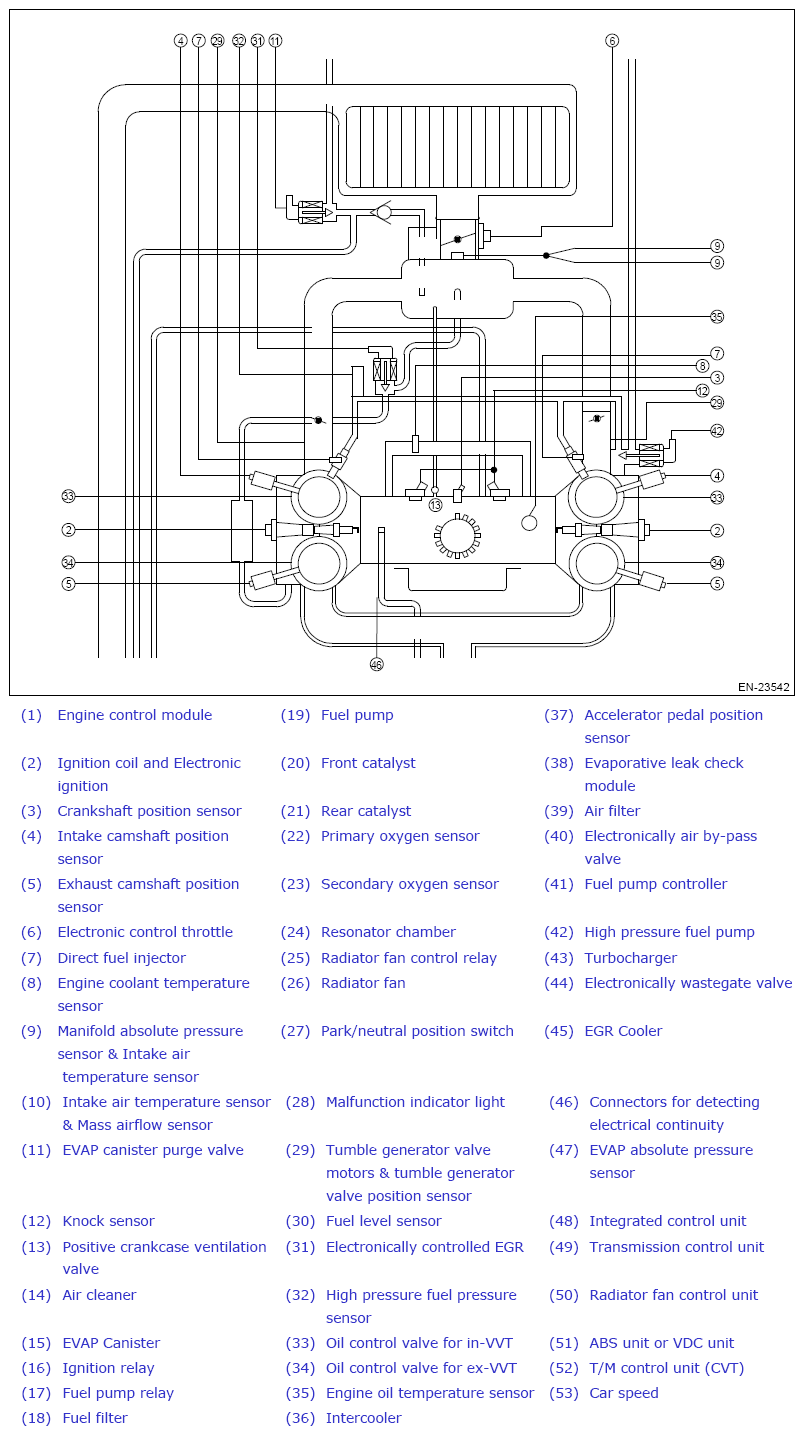

System Block Diagram

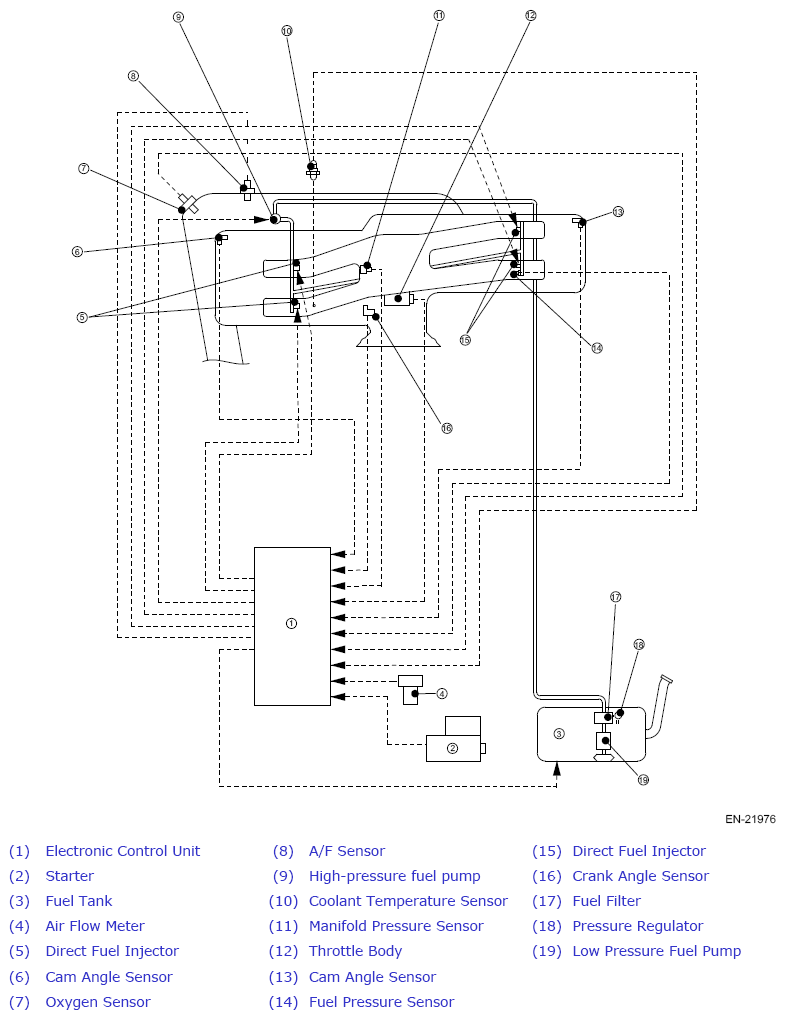

System Block Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
