Section 11 (Emission Control Systems (Aux. Emission Control Devices) (2.4L)): Canister: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the clip (C) and canister bracket (B).

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

  2. Connect the purge tube (A). Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE C) .

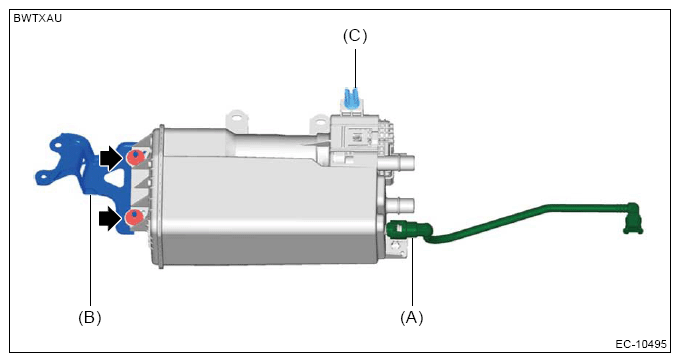

    G13618676Courtesy of SUBARU OF AMERICA, INC.
  3. Install the canister.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

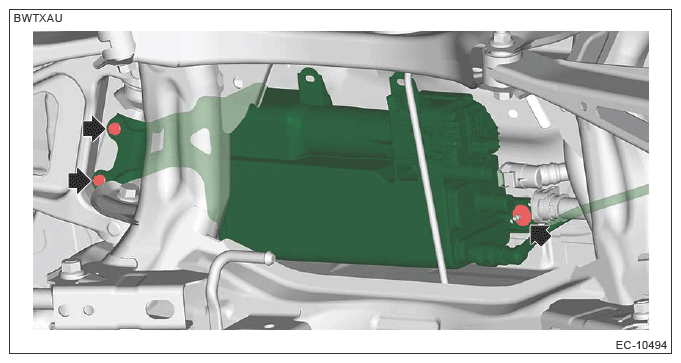

    G13618675Courtesy of SUBARU OF AMERICA, INC.
  4. Install the circulate tube (B) to the clip.
  5. Secure the harness to the canister, and connect the connector (A).

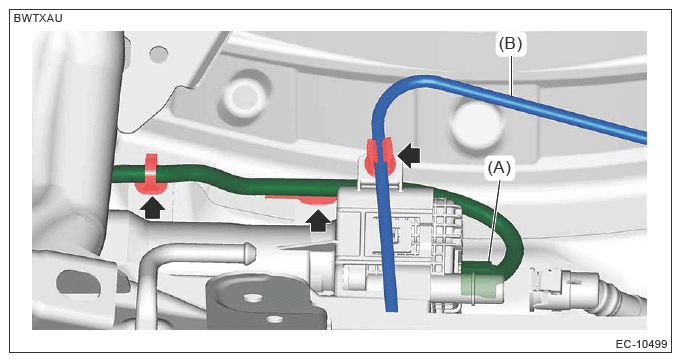

    G13618674Courtesy of SUBARU OF AMERICA, INC.
  6. Connect the purge tube (C). Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE D) .
  7. Connect the vent tube (B). Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE G) .

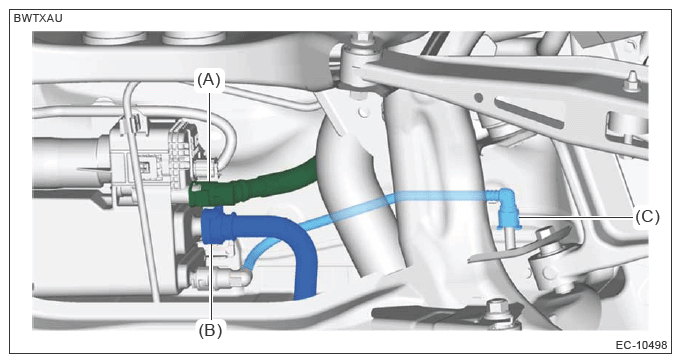

  8. Connect the drain tube (A). Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) .
    G13619849Courtesy of SUBARU OF AMERICA, INC.
  9. Install the rear differential. Refer to DIFFERENTIALS>Rear Differential (VB-type)>INSTALLATION .
  10. Connect the ground terminal to battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
