Rear Regulator and Motor Assembly: Removal

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel rear door. Refer to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>REAR DOOR .
  3. Remove the rear sealing cover. Refer to EXTERIOR BODY PANELS>Sealing Cover>REMOVAL>REAR SEALING COVER .
  4. Remove the glass assembly rear door. Refer to GLASS/WINDOW/MIRRORS>Rear Door Glass>REMOVAL .

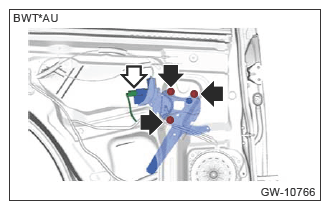

  5. Remove the regulator and motor assembly rear.
    1. Disconnect the connector of the motor rear.
    2. Remove the bolts, and then remove the regulator and motor assembly rear.
      G13625416Courtesy of SUBARU OF AMERICA, INC.
