Rear Seat

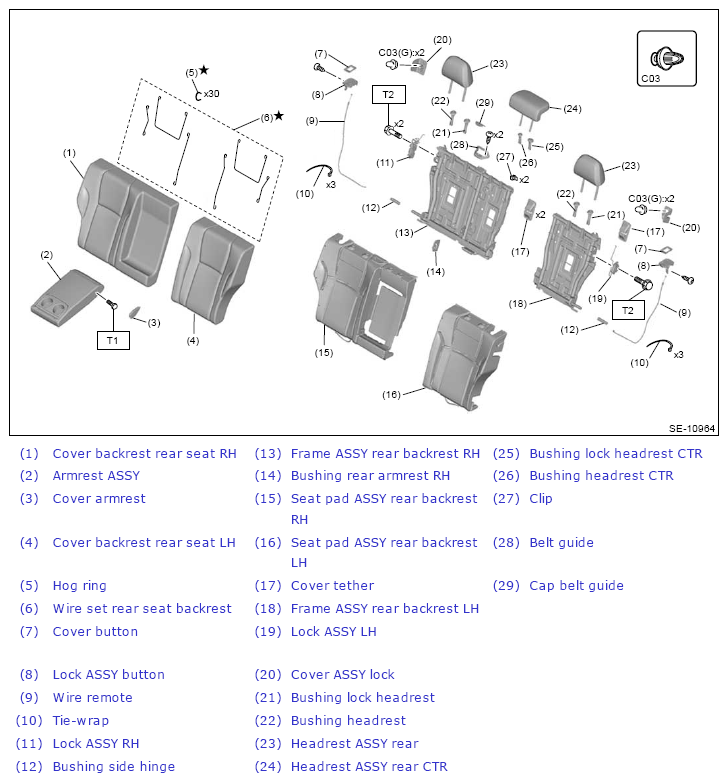

Fig 1: Rear Seat Components (With Torque Specification) - Sedan Model (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 17.6 (1.8, 13.0)

T2: 24.5 (2.5, 18.1)

Courtesy of SUBARU OF AMERICA, INC.

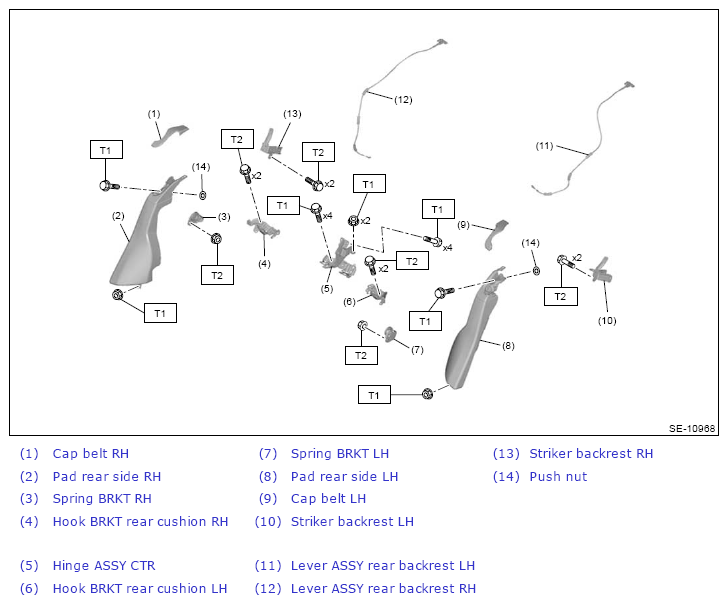

Fig 2: Rear Seat Components (With Torque Specification) - Sedan Model (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 24.5 (2.5, 18.1)

T2: 33 (3.4, 24.3)

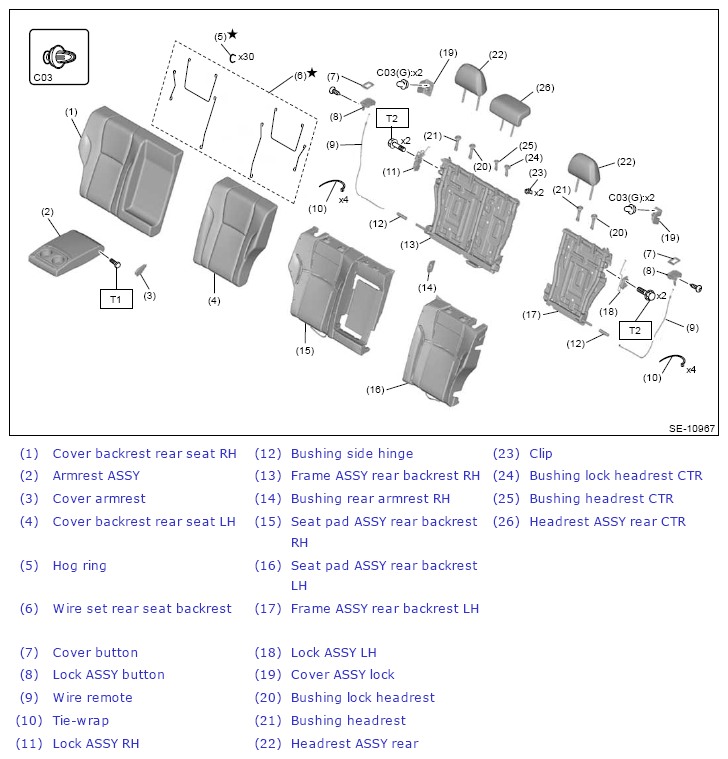

Fig 3: Rear Seat Components (With Torque Specification) - Outback Model (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 17.6 (1.8, 13.0)

T2: 24.5 (2.5, 18.1)

Courtesy of SUBARU OF AMERICA, INC.

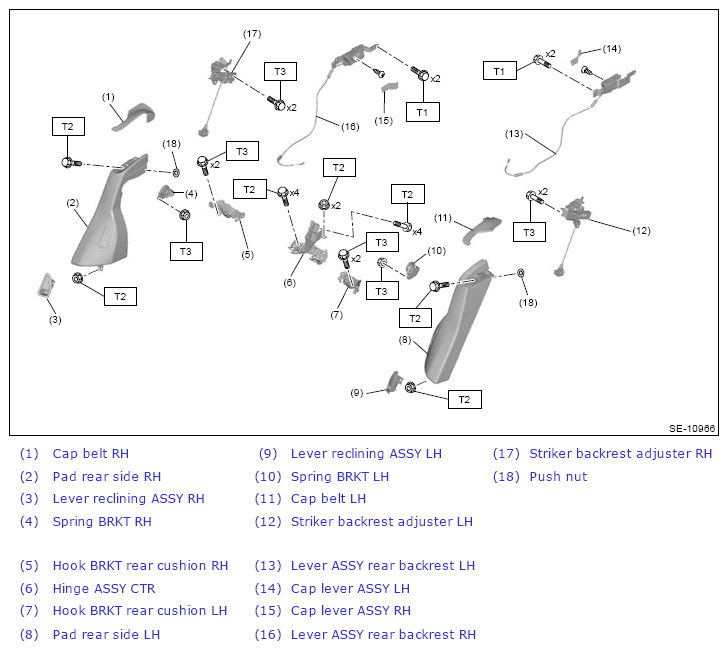

Fig 4: Rear Seat Components (With Torque Specification) - Outback Model (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 24.5 (2.5, 18.1)

T3: 33 (3.4, 24.3)
