Home
>>
Subaru
>>
2020
>>
Outback Base
>>
Repair and Diagnosis
>>
Body & Frame
>>
Exterior Body Panels
>>
Body Structure
>>
Plug/Grommet Sheet
>>
Component
>>
Side Surface
Side Surface
NOTE:
Illustration indicates the LH side. The structure of RH side is symmetrical.

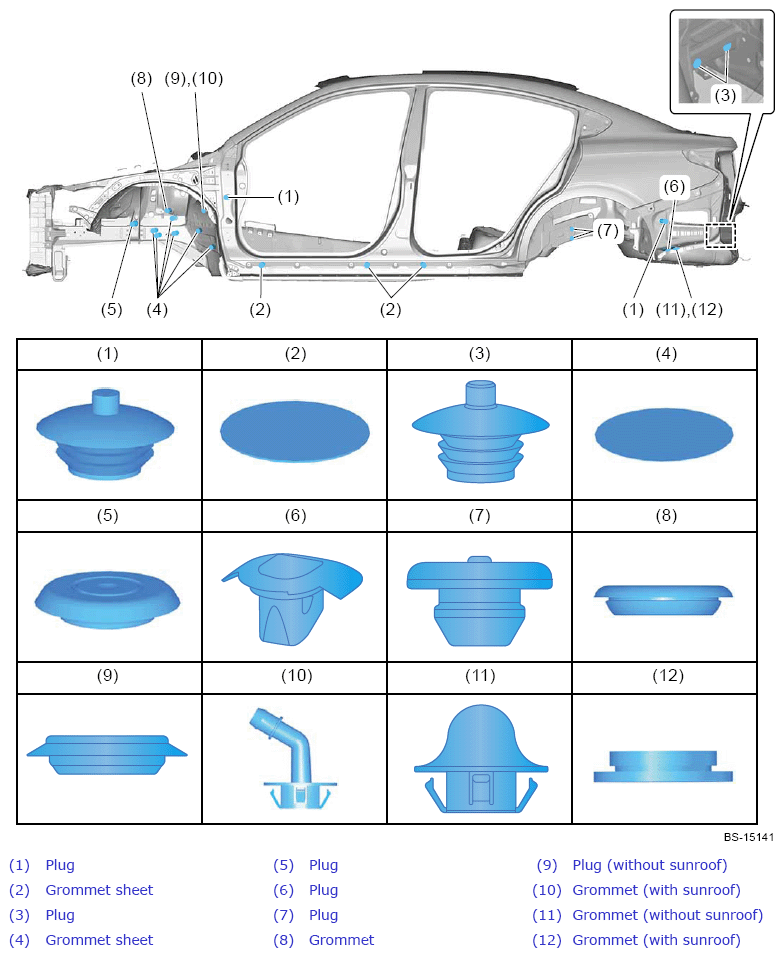

Sedan model
Courtesy of SUBARU OF AMERICA, INC.

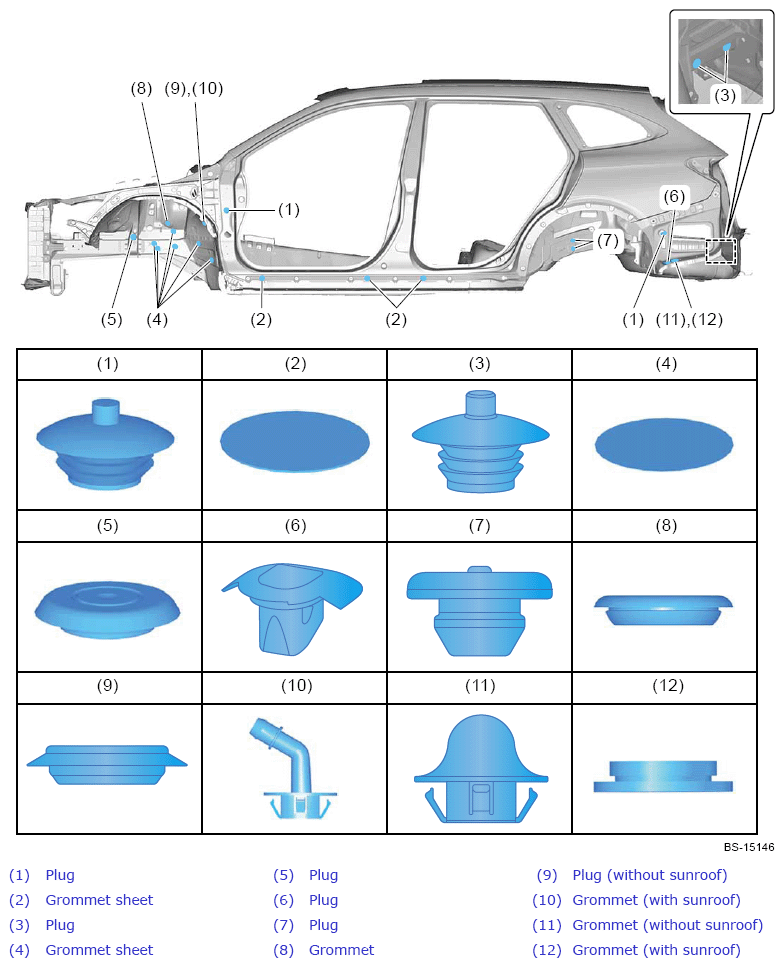

OUTBACK model
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
