Front Hood Lock Assembly: Removal

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct.
  3. Remove the clips, and remove the cover UPR front.
    G13622503Courtesy of SUBARU OF AMERICA, INC.

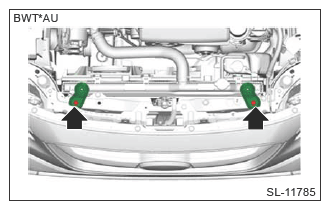

  4. Remove the bolts and remove the radiator upper bracket.
    G13622504Courtesy of SUBARU OF AMERICA, INC.

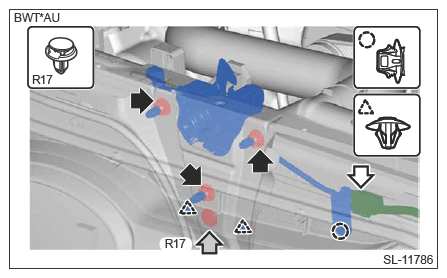

  5. Remove the lock assembly front hood.
    1. Disconnect the connector and connector clip.
    2. Remove the harness clips, nuts and clips, and remove the lock assembly front hood.
      G13625731Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Push the condenser assembly and radiator toward the engine side to secure working space, then pull out the lock assembly front hood through the clearance.
    3. Remove the cable assembly front hood.
      G13625732Courtesy of SUBARU OF AMERICA, INC.
