Power Seat Memory System (Diagnostics): Electrical Component Location: Location

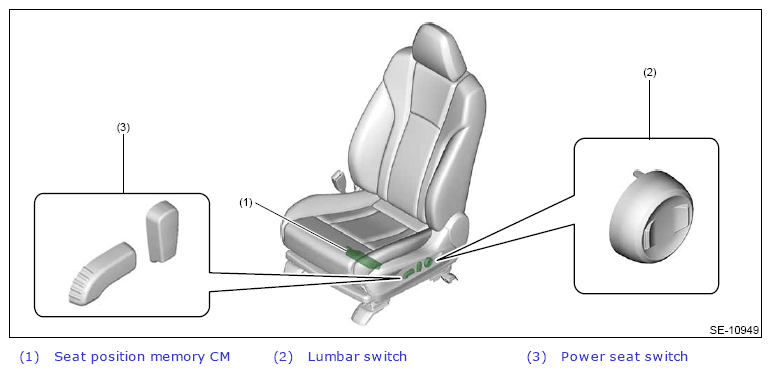

G13632941

Courtesy of SUBARU OF AMERICA, INC.

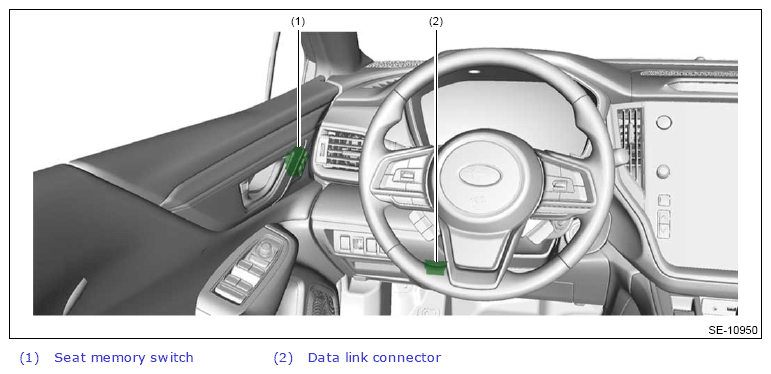

G13632942

Courtesy of SUBARU OF AMERICA, INC.

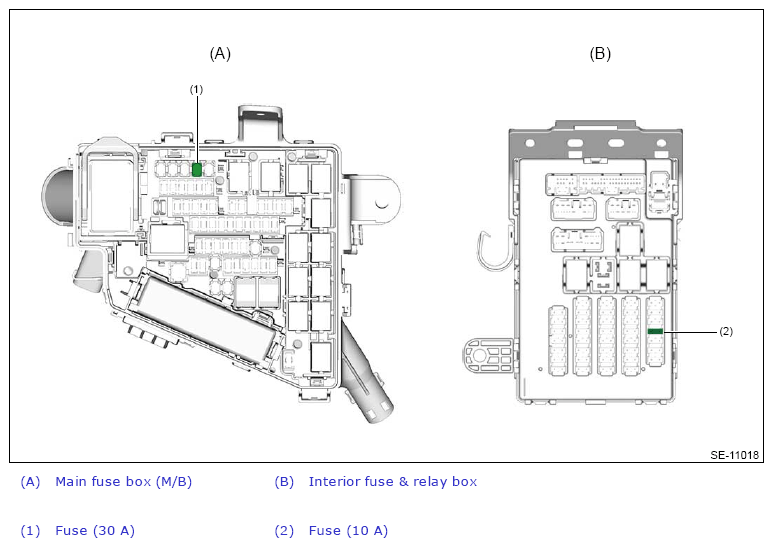

G13632943

Courtesy of SUBARU OF AMERICA, INC.
