Home >> Subaru >> 2020 >> Outback Base >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Lighting System >> Headlight Assembly >> Disassembly >> Turn Signal Light Bulb

Turn Signal Light Bulb

  1. Rotate in the direction of arrow shown in the figure to remove the bulb socket.
  2. Remove the turn signal light bulb.

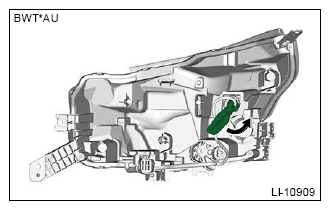

    • RH side
      G13622810Courtesy of SUBARU OF AMERICA, INC.

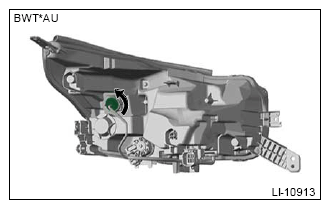

    • LH side
    G13622811Courtesy of SUBARU OF AMERICA, INC.
