View Button

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: Release the shift lock and shift the select lever to the "N" position. Refer to CONTROL SYSTEMS>Select Lever>REMOVAL .
  2. Remove the grip and boot. Refer to CONTROL SYSTEMS>Select Lever>REMOVAL .
  3. Remove the cover assembly front. Refer to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .

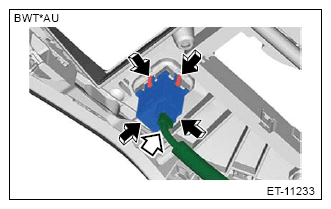

  4. Remove the switch assembly VIEW.
    1. Disconnect the connector.
    2. Release the claws, and remove the switch assembly VIEW.
    G13623003Courtesy of SUBARU OF AMERICA, INC.
