Front Speaker: Removal: Tweeter

CAUTION: Before handling the airbag system components, refer to AIRBAG SYSTEM>General Description>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel assembly A pillar. Refer to EXTERIOR/INTERIOR TRIM>Upper Inner Trim>REMOVAL>A PILLAR TRIM .

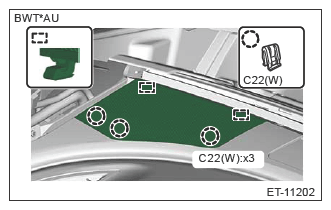

  3. Release the clips and hooks, then detach the grille speaker side.
    G13622969Courtesy of SUBARU OF AMERICA, INC.

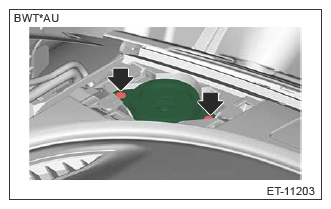

  4. Remove the speaker assembly tweeter.
    1. Remove the screws.
      G13622970Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the speaker assembly tweeter.
