Front Speaker: Removal: Center

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the driver monitoring unit assembly. Refer to INSTRUMENTATION/DRIVER INFO>Driver Monitoring Unit>REMOVAL .
    NOTE: For the model without driver monitoring system, remove the cover center UPR in the same procedure as for the driver monitoring unit assembly.
  3. Release the clips, then detach the grille speaker center.
    G13622971Courtesy of SUBARU OF AMERICA, INC.

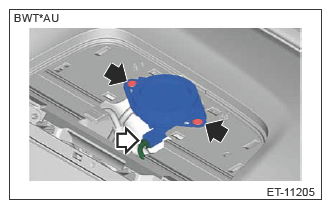

  4. Remove the speaker assembly center.
    1. Disconnect the connector.
    2. Remove the screws and remove the speaker assembly center.
    G13622972Courtesy of SUBARU OF AMERICA, INC.
