Sedan model

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel trunk lid. Refer to EXTERIOR/INTERIOR TRIM>Trunk Room Trim>REMOVAL .
  3. Remove the rearview camera assembly.
    CAUTION: Do not drop or apply any impact to the rearview camera assembly because it is a precision equipment.

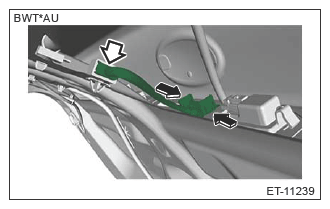

    1. Disconnect the connector.
    2. Disconnect the claws and then remove the rearview camera assembly.
    G13623015Courtesy of SUBARU OF AMERICA, INC.
