OUTBACK model

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel assembly rear gate LWR. Refer to EXTERIOR/INTERIOR TRIM>Rear Gate Trim>REMOVAL .
  3. Remove the garnish assembly rear gate. Refer to EXTERIOR/INTERIOR TRIM>Rear Gate Garnish>REMOVAL .
  4. Remove the nozzle rear camera washer. Refer to WIPER AND WASHER SYSTEMS>Rear Washer>REMOVAL>REAR CAMERA WASHER .
  5. Remove the rearview camera assembly.
    CAUTION: Do not drop or apply any impact to the rearview camera assembly because it is a precision equipment.
    1. Disconnect the connector.
    2. Disconnect the claws and then remove the rearview camera assembly.

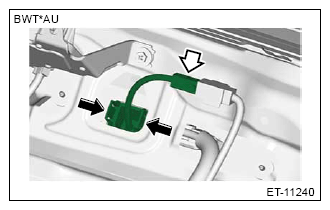

    G13623016Courtesy of SUBARU OF AMERICA, INC.
