Accessory Power Supply Socket: Removal: Front

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the pocket COMPL. Refer to EXTERIOR/INTERIOR TRIM>Glove Box>REMOVAL .
  3. Remove the socket assembly.

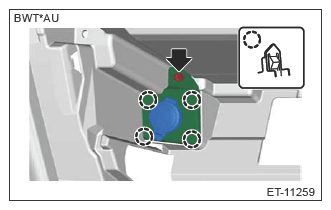

    1. Remove the screws.
    2. Release the claws and remove the panel socket assembly.
      G13623018Courtesy of SUBARU OF AMERICA, INC.

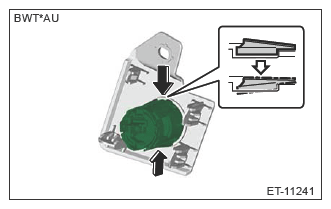

    3. While releasing the claw, press it in from the rear to remove the socket assembly.
    G13623019Courtesy of SUBARU OF AMERICA, INC.
