System Block Diagram

G13632784Courtesy of SUBARU OF AMERICA, INC.
G13632785Courtesy of SUBARU OF AMERICA, INC.
G13632786Courtesy of SUBARU OF AMERICA, INC.

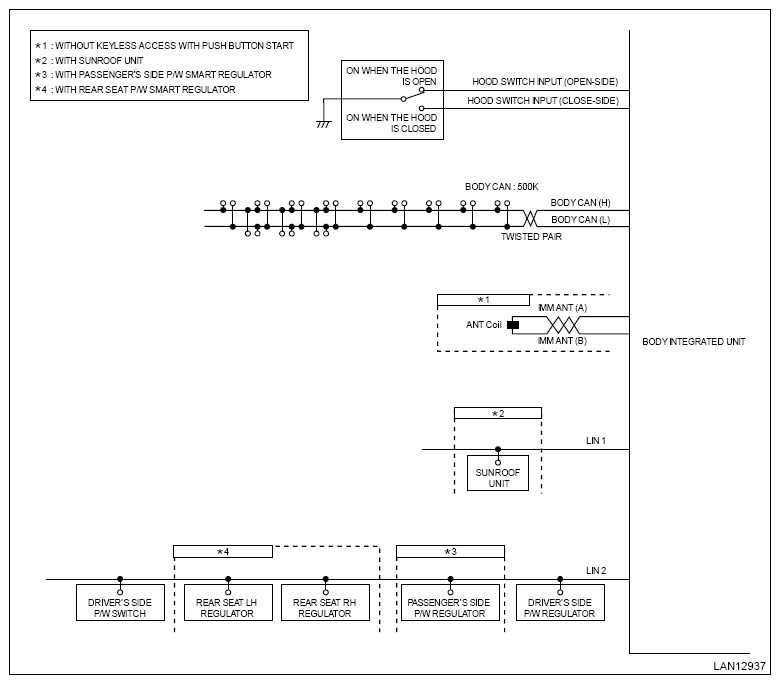

G13632787Courtesy of SUBARU OF AMERICA, INC.
G13632788Courtesy of SUBARU OF AMERICA, INC.

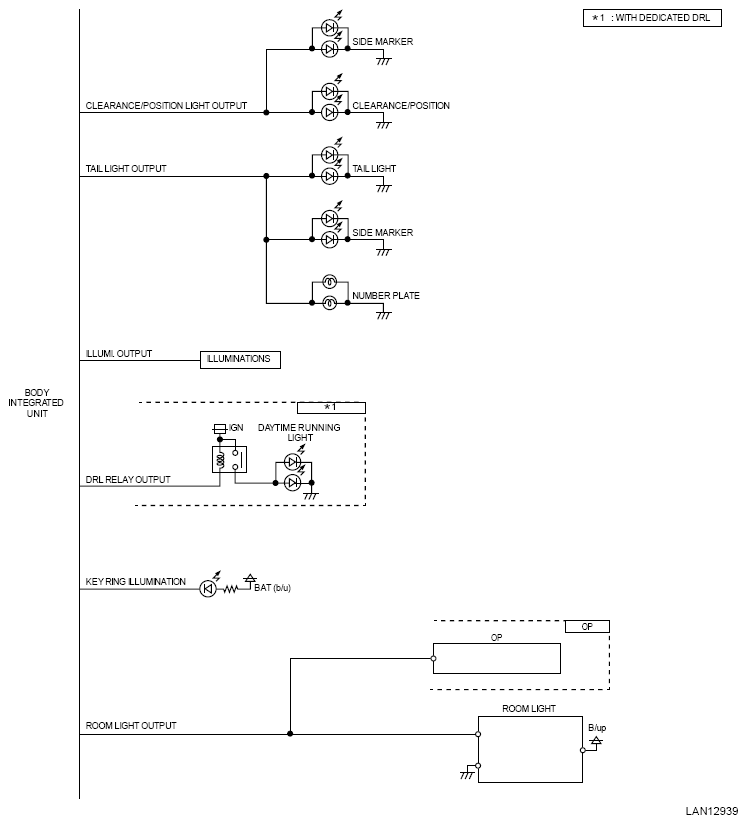

G13632789Courtesy of SUBARU OF AMERICA, INC.
G13632790Courtesy of SUBARU OF AMERICA, INC.
