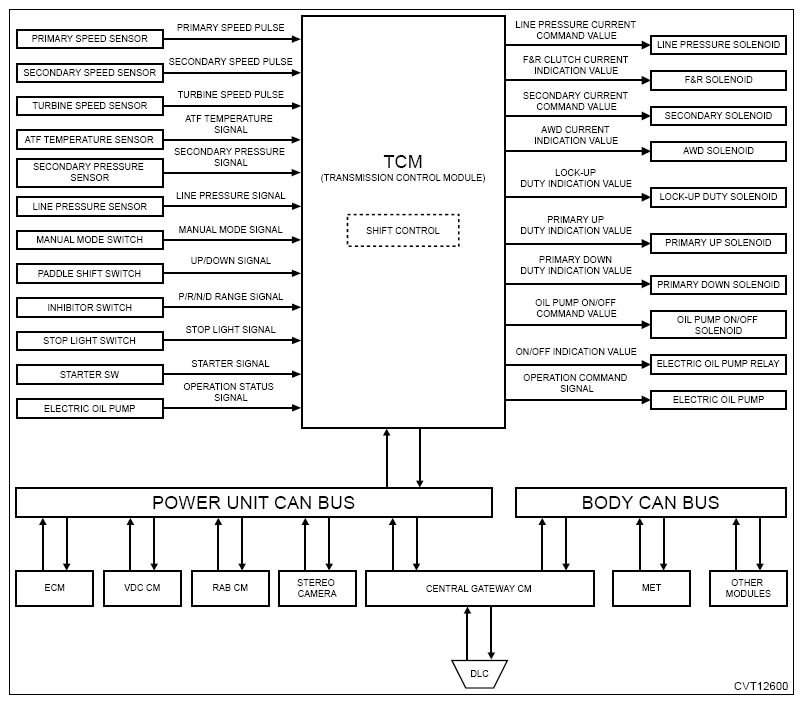

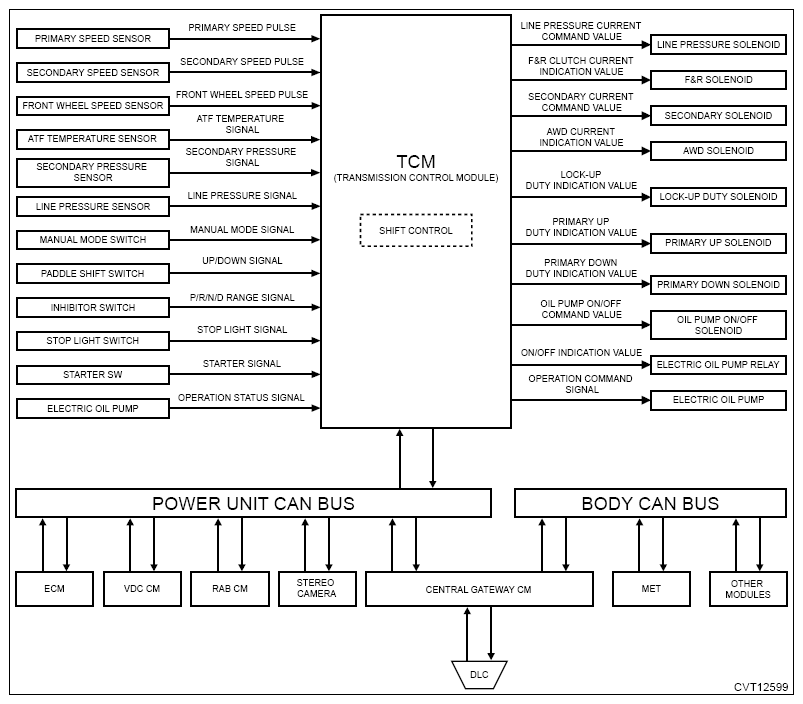

Home >> Subaru >> 2020 >> Outback Base >> Repair and Diagnosis (Single Page) >> Transmission >> Automatic Trans >> Continuously Variable Transmission (Diagnostics) >> General Description >> System Block Diagram
