Keyless Access With Push Button Start System: Wiring Diagram

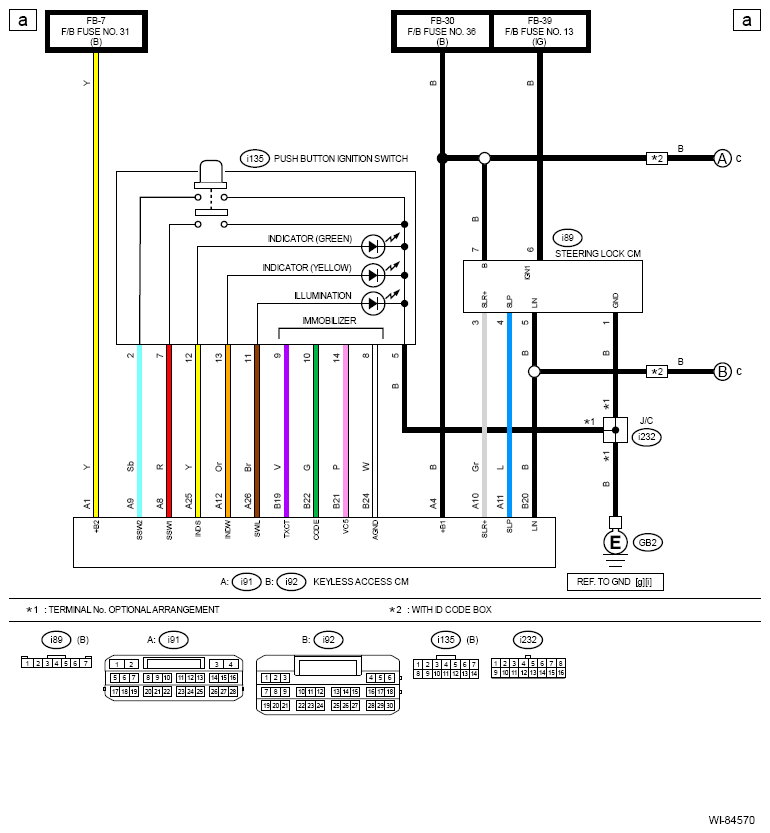

G13626567

Courtesy of SUBARU OF AMERICA, INC.

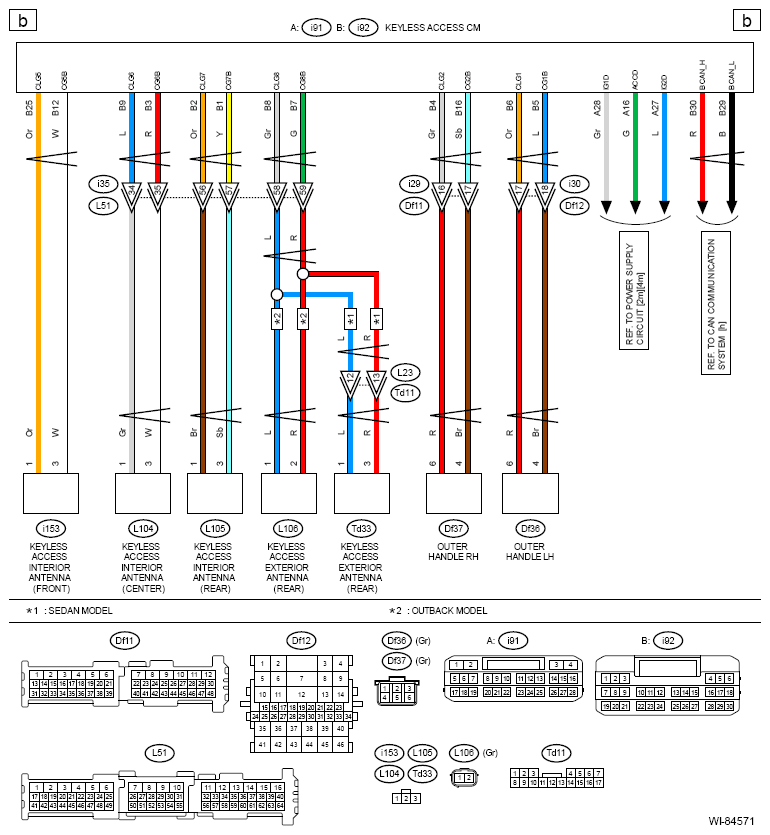

G13626568

Courtesy of SUBARU OF AMERICA, INC.

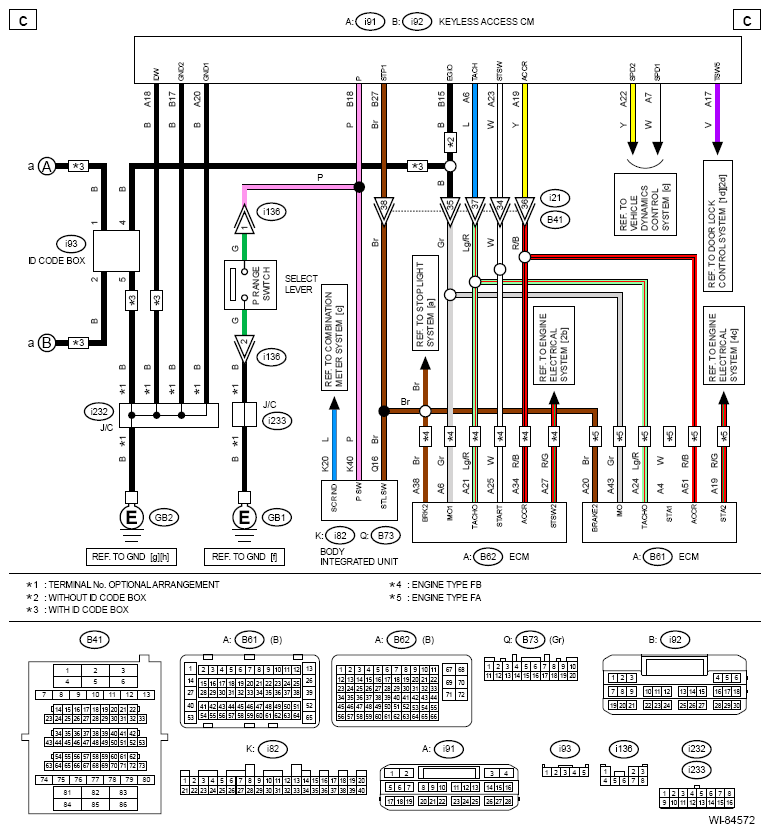

G13626569

Courtesy of SUBARU OF AMERICA, INC.
