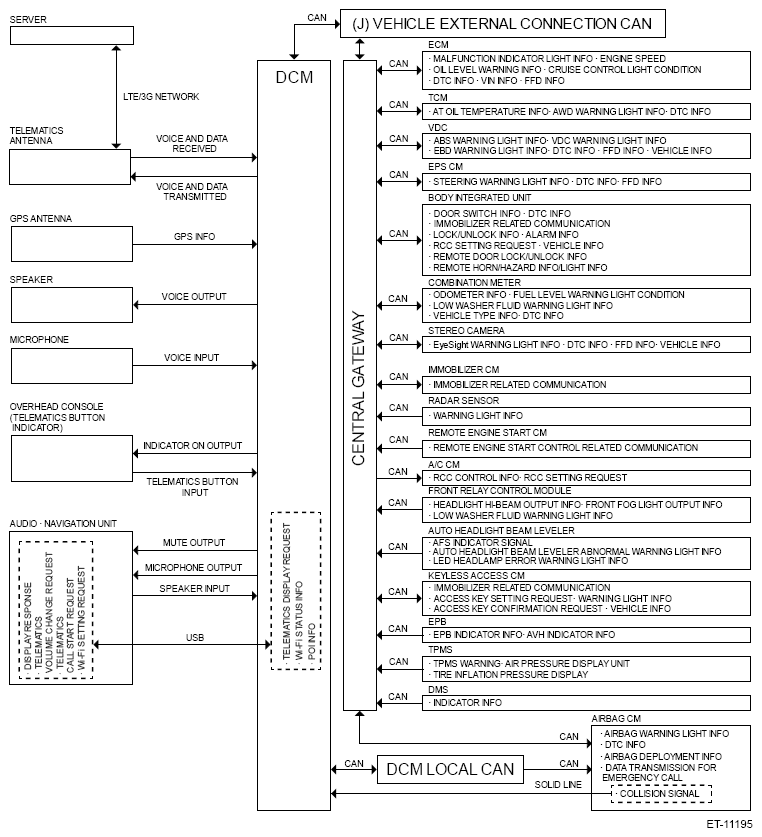

Main signals used between DCM and relevant Control Module

G13632865

Courtesy of SUBARU OF AMERICA, INC.
