Power Seat Switch

  1. Prior to starting work, check the following precautions. Refer to SEATS>General Description>CAUTION .
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the front seat from vehicle. Refer to SEATS>Front Seat>REMOVAL .

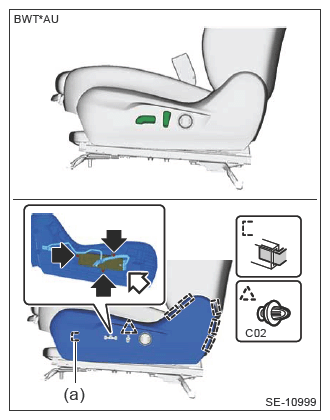

  4. Remove the cover hinge outside.
    1. Remove the knob power seat.
    2. Release it from the hinge base cover outside in the rear side.
    3. Release the clips.
    4. Pull forward to release the claw (a) and remove the cover hinge outside.
    5. Remove the screws to remove the switch assembly power seat.
    6. Disconnect the switch assembly power seat connector and remove the cover hinge outside.
      G13625525Courtesy of SUBARU OF AMERICA, INC.
