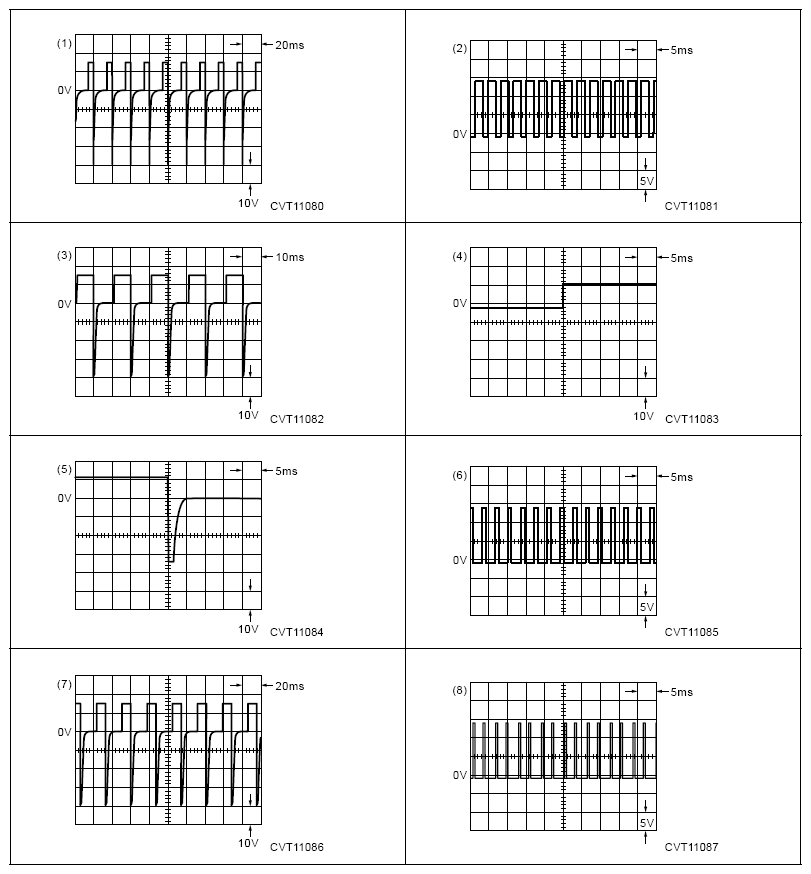

Transmission Control Module (TCM) I/O Signal: Waveform: Solenoid
Courtesy of SUBARU OF AMERICA, INC.
ENGINE TYPE FB
Courtesy of SUBARU OF AMERICA, INC.
ENGINE TYPE FA
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
