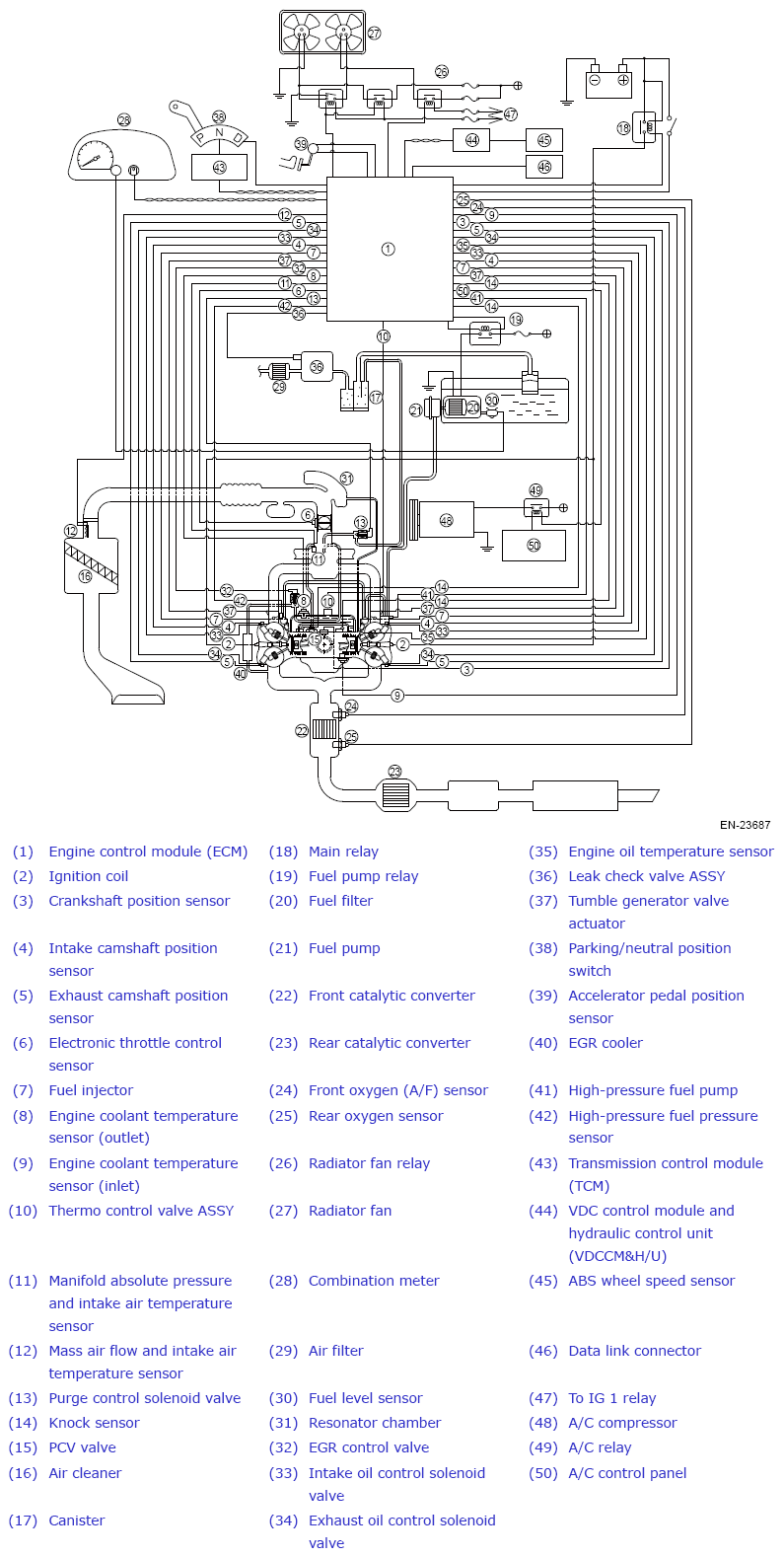

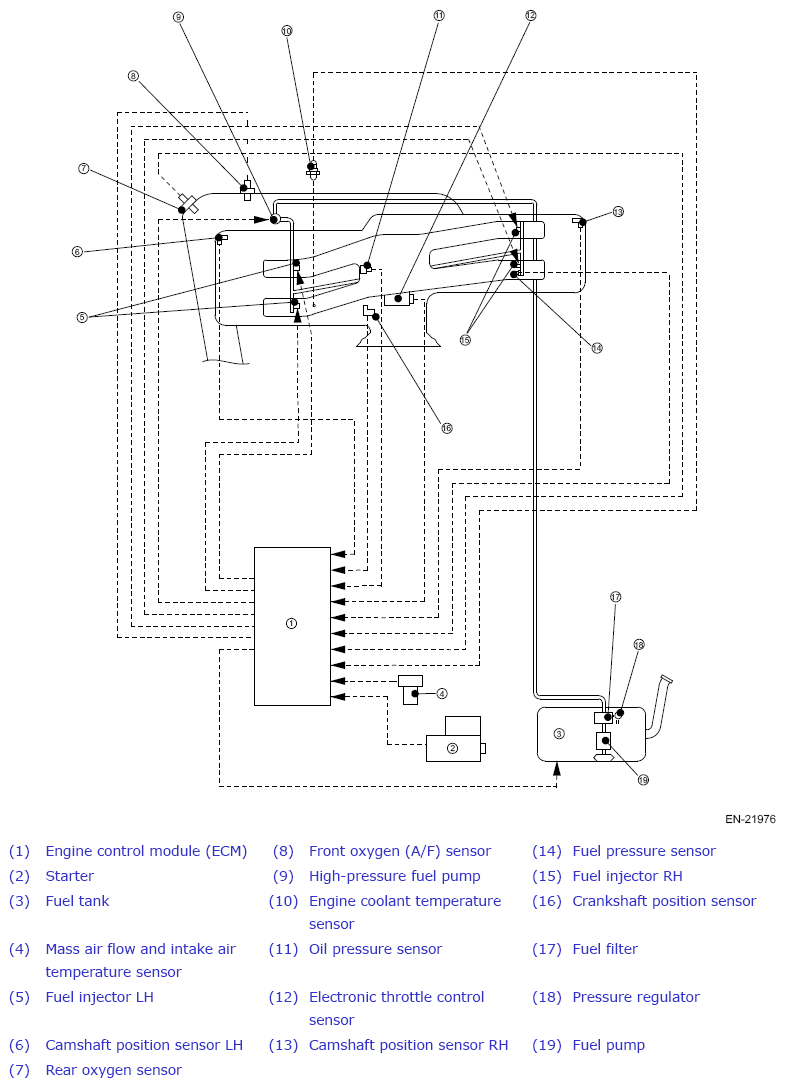

Home >> Subaru >> 2020 >> Legacy Base >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System (Diagnostics) (2.5L) - Introduction >> General Description >> System Block Diagram
