After Overhaul

  1. Install the torque converter. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TORQUE CONVERTER>INSTALLATION .

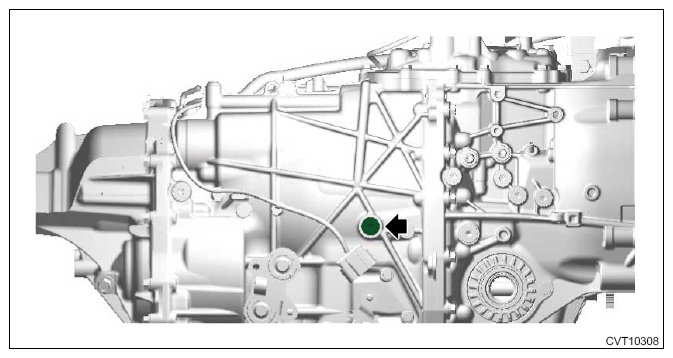

  2. Remove the filler plug (for overhaul), and refill approx. 10 L (10.6 US qt, 8.8 Imp qt) of CVTF.
    CAUTION: Always use specified CVTF. Using fluid other than specified CVTF will cause malfunction. Refer to RECOMMENDED MATERIALS>GREASE>CVTF .
    G11255745Courtesy of SUBARU OF AMERICA, INC.
  3. Using a new gasket, install the filler plug (for overhaul).

    Tightening torque:

    50 N.m (5.1 kgf-m, 36.9 ft-lb)
