Rear Seat

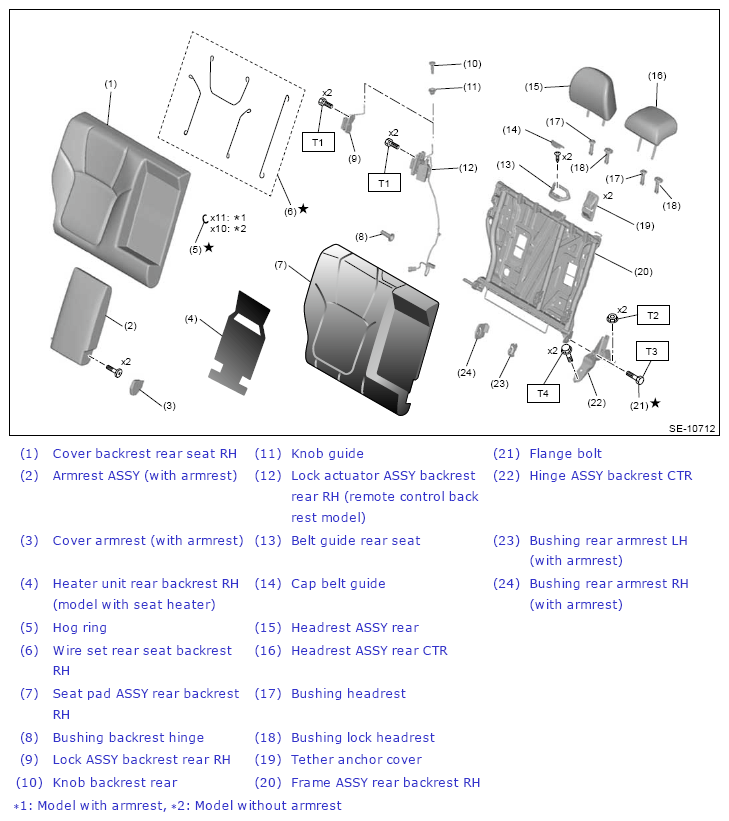

Fig 1: Rear Seat Components Location (1 Of 4)

G13593124

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 24.5 (2.5, 18.1)

T3: 29 (3.0, 21.4)

T4: 33 (3.4, 24.3)

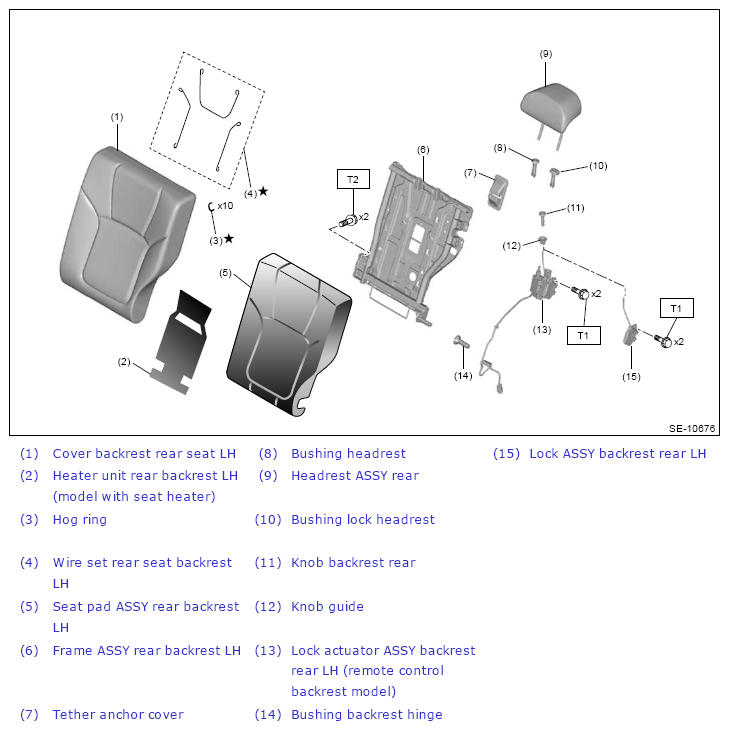

Fig 2: Rear Seat Components Location (2 Of 4)

G13593125

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 33 (3.4, 24.3)

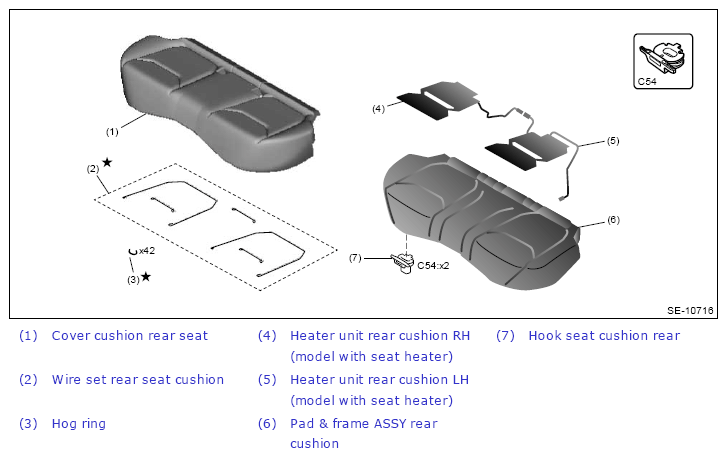

Fig 3: Rear Seat Components Location (3 Of 4)

G13593126

Courtesy of SUBARU OF AMERICA, INC.

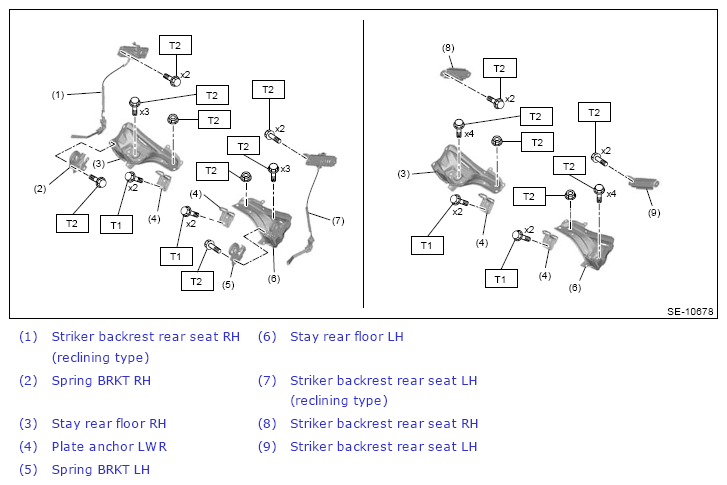

Fig 4: Rear Seat Components Location (4 Of 4)

G13593127

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 33 (3.4, 24.3)
