Steering Heater Relay

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover LWR driver. Refer to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  3. Remove the knee airbag module. Refer to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
  4. Remove the body integrated unit. Refer to SECURITY AND LOCKS>BODY INTEGRATED UNIT>REMOVAL .

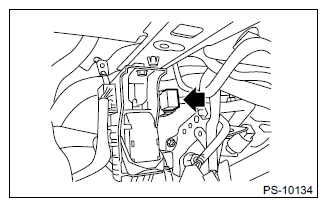

  5. Remove the steering heater relay.
G11245570Courtesy of SUBARU OF AMERICA, INC.
