Incorrect Freeze-Frame Data Description In Service Manual (01-180-20)

Publication date: 2020-02-21
Reference number: 01-180-20

INCORRECT FREEZE-FRAME DATA DESCRIPTION IN SERVICE MANUAL

TECHNICAL INFORMATION TIPS

Reference Number(s): 01-180-20, Date of Issue: February 21, 2020

SUBARU:

2020 Legacy, Outback; 2019-20 Forester; 2017-20 Impreza; 2018-20 Crosstrek

APPLICABILITY

2020MY Legacy & Outback

2019-20MY Forester

2017-20MY Impreza

2018-20MY Crosstrek

INTRODUCTION

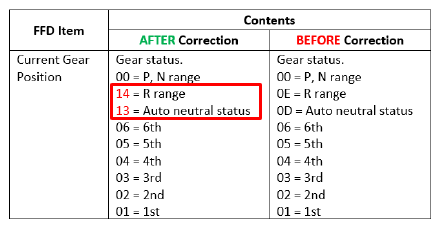

This Service Information bulletin informs of an upcoming correction to the Service Manual involving Gear Position shown in Freeze-Frame Data acquired during Engine diagnosis. The Service Manual will be corrected to reflect the "AFTER Correction" information as shown in the table below.

SERVICE PROCEDURE/INFORMATION

REMINDER: Customer satisfaction and retention starts with performing quality repairs.

ENGINE (DIAGNOSTICS) > Freeze Frame Data> Current Gear Position

IMPORTANT REMINDERS:

SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
Always refer to STIS for the latest service information before performing any repairs.
