FOTA (Firmware Over-The-Air) Reprogramming - Procedure To Optimize HARMAN Gen 3.1 Audio/Navigation Units (15-256-19R)

FOTA (FIRMWARE OVER-THE-AIR) REPROGRAMMING - PROCEDURE TO OPTIMIZE HARMAN GEN 3.1 AUDIO/NAVIGATION UNITS

TECHNICAL SERVICE BULLETIN

APPLICABILITY

2019-23MY Impreza

2019-23MY Crosstrek (Including Hybrid Model)

2019-24MY Forester

2019MY Legacy & Outback

2019-21MY WRX

2019-21MY BRZ-Navigation-equipped Models ONLY

2019-22MY Ascent

INTRODUCTION

This bulletin provides information on a new reprogramming procedure (FOTA) to optimize the Harman Gen 3.1 Audio and Navigation head units (H/U) utilized in the models as listed above. Firmware-over-the-air (FOTA) is a process by which remote devices can receive updates to their operating software. This process has become second nature with smartphones, tablets and many other connected devices. FOTA for automotive infotainments systems has been designed with a similar type of customer convenience in mind. FOTA updates are designed to provide regular enhancements along with some software patches to our infotainment systems improving the user experience for our customers. The convenience factor comes not only with the supply of regular updates and the enhancements they provide but also through customer control of when these updates are applied by allowing them the freedom to choose when these updates are downloaded and installed. All that is required is a secure WiFi connection such as through a home network or the use of a secure WiFi hotspot to create a connection to the update server and any customer can obtain and install an available FOTA update to their infotainment head unit. In this bulletin we are focusing on FOTA for Harman Gen 3.1 MID-level audio systems and Gen 3.1 HIGH audio-navigation systems. BASE and BASE PLUS models are not FOTA capable. This bulletin will describe in greater detail the process for how FOTA is accomplished as well as provide insights and some procedures for how to resolve conditions that may arise as a result of audio or audio/navigation head unit swaps or replacements performed outside of the Harman/United Radio exchange unit program. The procedure will involve:

• Assisting customers with FOTA related concerns if they have been unsuccessful in performing the FOTA by themselves. (Possible vehicle or H/U concern.)*
• Performing the FOTA update for customers not comfortable or needing assistance with performing it themselves but have requested the Retailer install it.*
• Updating the software using a USB flash drive following the steps outlined in TSB 15-236-18R  , "Reprogramming File Availability for Additional Optimization of Harman Gen 3 Audio and Navigation Head Units" when FOTA cannot be performed due to VIN/head unit serial number mismatch.*

It is VERY IMPORTANT  to read and understand this information completely before proceeding.

PART INFORMATION

Multimedia System Type	Descriptive Features
6.5 Inch Display Audio System (Base)	No CD slot/Eject Button
6.5 Inch Display Audio System (Base +)	Equipped with CD Player and Eject Button
8.0 Inch Display Audio System (Mid)	Phone Button
8.0 Inch Audio/Navigation System (High)	Map Button but no Phone Button

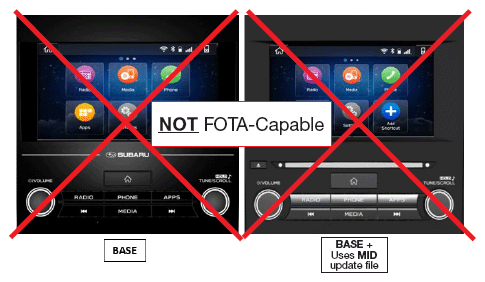

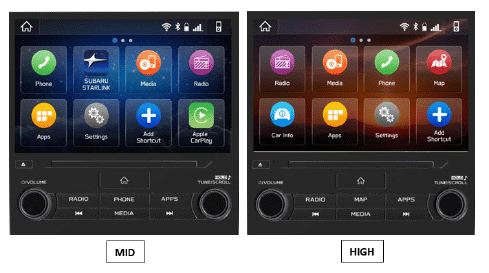

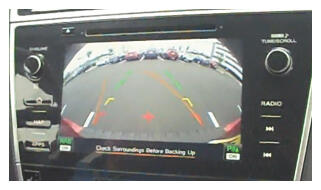

Reference photos of each head unit faceplate are supplied below:

SERVICE PROCEDURE/INFORMATION

The head unit software may be updated:

1. Using Smartphone and cellular network (3G, 4G) - outlined starting on page 6
2. Using a Secure WiFi Network (home network or hotspot)- outlined starting on page 15.

The update process involves downloading and installing the software update therefore, time duration depends on signal strength and transfer rate performance. During installation, H/U functionality will be restricted.

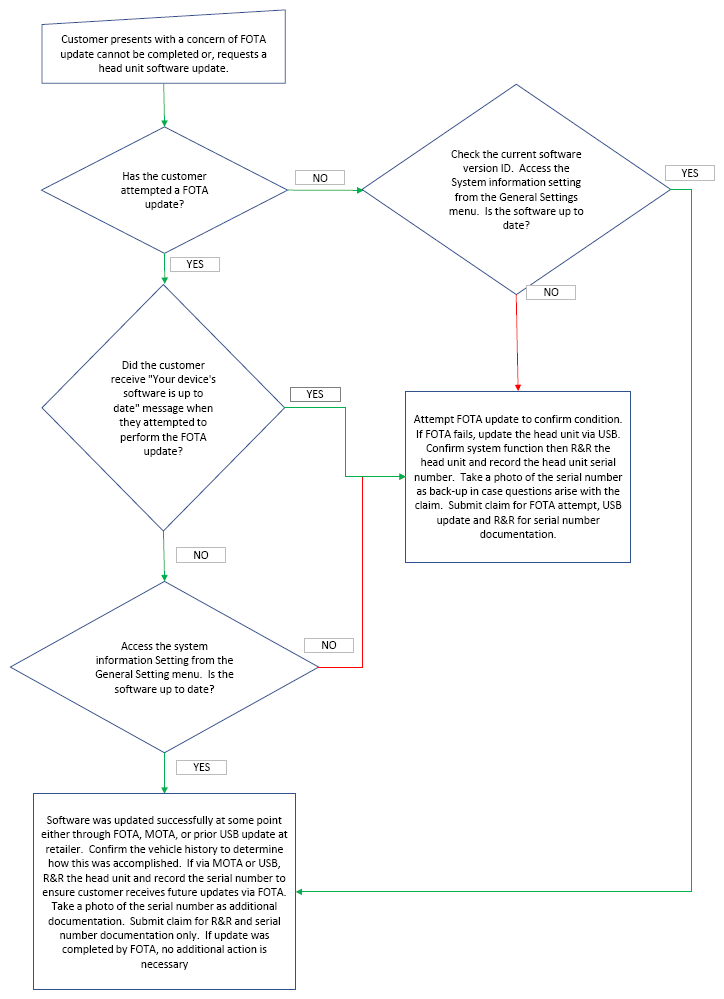

FLOW CHART

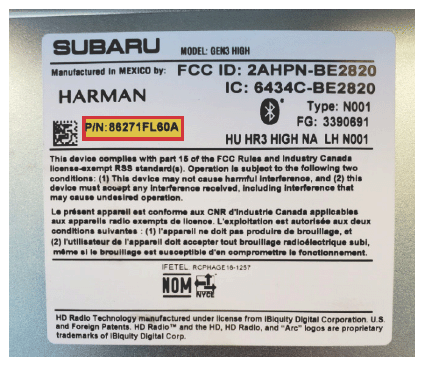

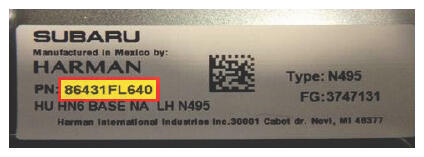

IMPORTANT NOTE:  If the H/U needs to be removed for any reason, always confirm the part number shown on the unit matches the part number in the Electronic Parts Catalog (EPC) for the specific VIN being repaired. Example photos are provided below for reference.

Set-Up Instructions and CAUTIONS:

• Move the vehicle to an outside location where the engine can be safely started and kept idling during the update process.
• Never idle the vehicle in a closed space such as a garage, even if the garage door is kept open.
• Once the vehicle is in a safe location, be sure the vehicle is in Park (CVT) or Neutral (MT) and the parking brake is fully engaged.
• Open one or more windows to ensure fresh air is available.
• Stay with the vehicle  until the update is completed.
• Unplug any devices, chargers, cables or other USB drives from the vehicle's USB and power ports.

Step 1: Check the Current Software Version Number

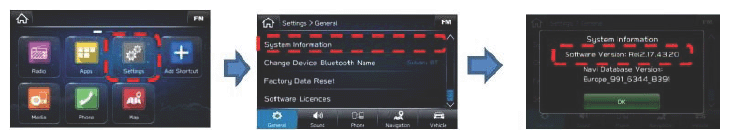

1. 1-1) Turn the engine ON. When the H/U powers on, press "I Agree".

   Once audio start-up completes, press the HOME button and select "Settings".

2. 1-2) From the General screen, select "System Information" to check current software version. (The pictures below are for illustration only and do not show the latest software version information.)
   • If the current software version is REL_UK.23.16.70, REL_UK.23.42.70 or Rel_UM.24.08.70, STOP  as the head unit has the latest version installed and no further action is needed.
   • Confirm the vehicle history to see if any H/U replacement has occurred in the past. If a new H/U was installed (part number listed in claim information) or if the H/U was swapped from another vehicle at any time, the H/U serial number must be captured and entered during claim submission to ensure compatibility for future FOTA updates. REMINDER:  H/U R&R is necessary to access the Serial Number label. See the H/U serial number sample photos presented on page 11 for reference.

Step 2: Required Preparation before Initiating the FOTA Update

TIP:  Taking photos of the screens may be easier than writing down the contents of each.

1. 2-1) Record all the preset stations saved by the customer.

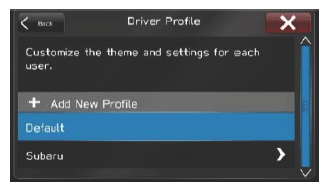

   1. 2-1-1) Confirm the driver profile (example shows "Default" as driver profile).
   2. 2-1-2) Go to the Radio screen.

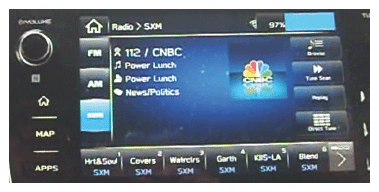

   3. 2-1-3) Record the saved preset stations (SXM, AM, and FM) (example shows #1: FM87.7 #2: FM92.7...).

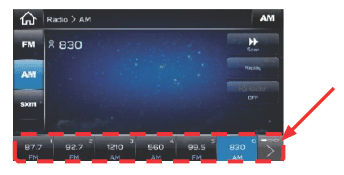

      NOTE: Make sure to check the next screen by scrolling (pressing the right arrow > button).
   4. 2-1-4) Change to next driver profile and repeat the actions above as necessary. (Example photo below shows other driver profiles. Be sure to note all the preset stations for each driver profile.)
   5. 2-1-5) Select the first driver profile again.
2. 2-2) Record the volume settings for each driver using the following steps:
   1. 2-2-1) From the Settings > Sound screen, press the "Sound" button.
   2. 2-1-2) Record each volume setting for: Entertainment Volume, AUX Volume Gain, Microphone Volume, and Navigation Volume.

Step 3: FOTA Reprogramming Procedure

1. Procedure for performing FOTA using Smartphone as WiFi hotspot and cellular network (3G, 4G):
   IMPORTANT: The H/U clock must  be set correctly in order to check for any available FOTA updates.

   Navi/Radio internal clock settings:

   Set the clock via GPS signal (Navi-equipped models only) or by smartphone using one of the following procedures, 1.1  or 1.2  :

   NOTE: Once the clock is set, it never resets unless the vehicle battery power supply is interrupted as a result of a discharged or disconnected battery. For Navi-equipped models (only), proceed to Step 1.1  . For all others proceed to Step 1.2  . If the head unit displays the time correctly, proceed ahead to Step 1.4  .

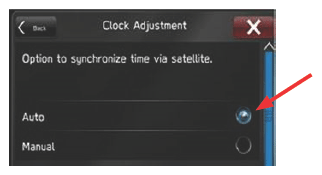

   1. 1.1) Setting the clock via GPS signal  (Navi-equipped models only):
      NOTE: The H/U clock must  be set correctly in order to check for any available FOTA updates. Always confirm the Clock Adjustment mode is set to Auto.
      1. 1.1.1) Check current vehicle position on the map screen. If position is correct, the Navi will receive clock information correctly. Proceed to Step 1.3.5. If position is not correct, please go to Step 1.3.1.b.
      2. 1.1.2) Move the vehicle to a location where the Navi can receive a strong GPS signal. (e.g. outside with a clear view of the sky). If the vehicle position shown is correct, Navi should be receiving and displaying clock information correctly. Proceed to Step 1.3.5.

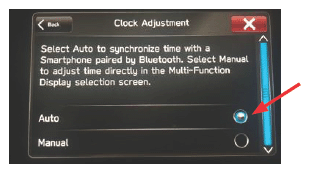

   2. 1.2) Setting the clock using any smartphone  (Phone MUST be paired to the H/U.):

      Bluetooth Pairing Procedure  (Follow this procedure if the phone is not already paired to H/U.):

      REMINDER:  The H/U clock must be set correctly in order to check for any available FOTA updates. Always confirm the Clock Adjustment mode is set to Auto.

      1. 1.2.1) Select Phone on Home screen.
      2. 1.2.2) Select Yes on "No Device Connected" pop-up.
         NOTE: If H/U display does not show the pop-up, please select "Add device" from the Phone Overview.
      3. 1.2.3) While the H/U displays the "waiting" screen shown below, operate the smartphone screens and select "Subaru BT" from the discoverable device list.

         *If the device name is changed on setting screen (Settings > General > Change Device Bluetooth Name), please select the proper device name.

      4. 1.2.4) Confirm the same PIN code is shown on the smartphone then select "Confirm".
      5. 1.2.5) Select "Pair" on the smartphone screen.
   3. 1.3) Transfer phonebook Procedure:
      1. 1.3.1) On the "Change Device" screen, identify the most recently paired device (iPhone is shown here).
      2. 1.3.2) Select the desired smartphone device.
      3. 1.3.3) Turn "Phonebook Download" on.
      4. 1.3.4) Operate the smartphone screen buttons to allow phonebook transferring.
      5. 1.3.5) Check Bluetooth setting of "Subaru BT" on the smartphone. Confirm "Sync Contacts" and "Show Notifications" are both set to ON.
         NOTE: Depending on the model (e.g. iOS or Android), these settings may need to be changed. Refer to the specific smartphone's User Manual for more detailed information/instructions.
      6. 1.3.6) Restart the H/U: Press and hold the Power button for 10 seconds or, turn the ignition OFF, open and close the driver's door then restart the engine.

         iOS setting display

         Android setting display

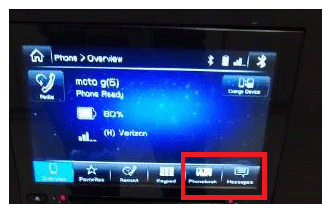

      7. 1.3.7) Confirm both the Phonebook and Messages buttons on the display are highlighted (activated) as shown below.
   4. 1.4 Connect to Network:

      The following procedure outlines how to connect to a smartphone hot spot as a secure Wi-Fi network. If the H/U is already connected to a secure Wi-Fi network, proceed to Step 1.5  .

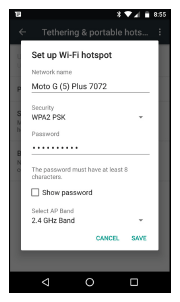

      1. 1.4.1) Prepare a Wi-Fi router device:
         NOTE: Depending on the model (e.g. iOS or Android), these settings may need to be changed. Refer to the specific smartphone's User Manual for more detailed information/instructions.

         iOS setting display

         Android setting display

      2. 1.4.2) Select "Settings" from the H/U Home screen.
      3. 1.4.3) Make sure "Wi-Fi" is displayed on the General menu.
      4. 1.4.4) Select the desired Wi-Fi device from the "Wi-Fi Settings" list.

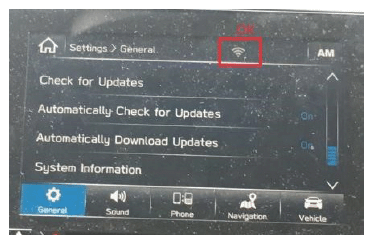

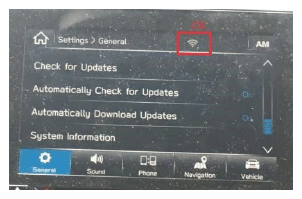

      5. 1.4.5) Confirm a secure WiFi connection has been established. The H/U display will show a Wi-Fi icon on top bar.
   5. 1.5) Check for Available Update:
      1. 1.5.1) Press the Home button on the H/U and select "Settings" from the Home screen.
      2. 1.5.2) Select "Check for Updates" from the General menu.
         NOTE: This button is grayed-out during H/U initialization. It usually takes about 1 minute for it to become active. If "Check for Updates" remains grayed out, try re-booting the H/U by pushing and holding the volume knob for 10 seconds or, turning OFF the ignition, opening the driver's door, and waiting for 2 minutes.
      3. 1.5.3) If the screen displays a "Software Update Ready to Download" pop-up, select "Download Now" to update the H/U software. (Picture below is for illustration only and does not show the latest software version.)

         Proceed to Step 1.6  .

      4. 1.5.4) If the H/U screen shows the "Connect to Wi-Fi" pop-up, try re-connecting to the network again as outlined in Step 1.4  above.
      5. 1.5.5) If the H/U screen shows "Your device's software is up to date." and confirmed as outlined in Step 1: "Check current software version", no further action is required. The head unit software is current.
         IMPORTANT: If the H/U software cannot be updated using FOTA, update the H/U following the USB flash drive procedure outlined in TSB 15-236-18R  . In such a case, a VIN/H/U Serial Number mismatch may exist. If this occurs, the H/U must be removed and the serial number recorded as shown below. In these cases, the COMPLETE 28-digit serial number is required to be entered in the Miscellaneous Detail field during claim submission (no spaces or special characters). Also, capture a photo of the serial number label for reference in case any question arises about the serial number submitted. Examples of the serial number label are shown below.

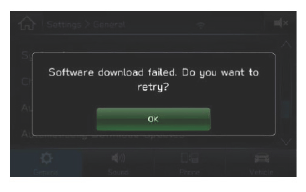

      6. 1.5.6) If the H/U display shows "Software download failed. Do you want to retry?", there is possibility the H/U is not receiving the clock information correctly.
      7. 1.5.7) Move the vehicle to a location where the Navi can receive GPS signal or connect to a smartphone via Bluetooth. Ensure that transferring of phonebook data has been approved on the phone. (To review clock setting procedures, refer to Step 1 above.)
   6. 1.6) Software Update:
      NOTE: Initially, it may appear that no action is occurring.

      THIS IS NORMAL.  Wait at least 2 minutes  for progress percentage to appear in the upper right of the H/U screen before attempting to restart the process.

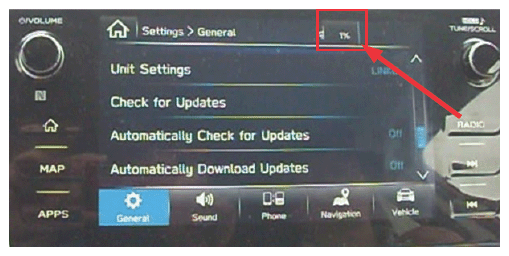

      1. 1.6.1) Wait until the download progress reaches 100%. During the software download, the H/U is fully functional.
         NOTE: It is normal for the progress to hang at some points for 1-2 minutes. This does not indicate a concern. BE PATIENT  .
         NOTE: When downloading via Wi-Fi, it may take anywhere from 5 to 20 minutes for the update to complete depending on the provider transfer rate signal strength.
      2. 1.6.2) The image below shows the pop-up window which will appear once the download completes and the update is ready to install.
      3. 1.6.3) Select "Install Now" to start the update installation.
         NOTE: If "Cancel" is selected, it will be necessary to download the update file again before installation can be attempted.
      4. 1.6.4) Stay with the vehicle  until the install has completed.
         NOTE: It will take approximately 10 minutes to complete the update installation.

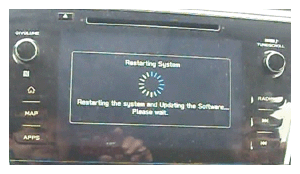

      5. 1.6.5) The H/U will automatically shut down and restart after the installation completes.
         NOTE:

         • The next step of update will be different depending on the software version installed prior to FOTA.
         • Depending upon the installation required, the H/U may repeatedly shut down and restart up to 3 times. The screen shown below does not indicate an unsuccessful or failed installation.
      6. 1.6.6) Wait until all the H/U restarts complete and the Home screen is displayed again.
         NOTE: The volume will go to default level suddenly even if the volume was previously turned down during or prior to the update. This is normal operation.
         NOTE: Station presets will display as "Initializing" until the data is fully loaded for SXM stations. In case of FM and AM presets, the text will change from "Initializing" to "Hold". To reset each preset, tune to the desired station then press and hold the corresponding preset button until the "beep" is heard to signal the reset was successful.
      7. 1.6.7) If the Home screen does not appear automatically, press the Home button to display the Home screen.
      8. 1.6.8) Perform Step 1  again to check the currently installed software version and confirm a successful update/installation.
      9. 1.6.9) Using the notes or photos collected at the start of this process in Step  2, reset all the customer's preset stations and volume settings.
      10. 1.6.10) Go to the Home screen.
      11. 1.6.11) Turn the engine off and open the driver's door to turn the H/U off and complete the procedure.

   If the software version does not match the one shown in Step 1.6.8, attempt the update process a second time. If after a second attempt the update still has not completed successfully, update the head unit software with USB flash drive following the steps outlined in TSB 15-236-18R  .

   IMPORTANT REMINDER:  If the H/U software cannot be updated using FOTA, update the H/U following the USB flash drive procedure outlined in TSB 15-236-18R  . In such a case, a VIN/H/U serial number mismatch may exist. The H/U must be removed, and the serial number recorded. In these cases, the serial number is required to be entered in the Miscellaneous Detail field during claim submission. In addition, capture a photo of the serial number tag for reference in case there is any question about the serial number submitted. See the H/U serial number sample photos presented on page 11 as reference.

2. FOTA Procedure Using Head Unit Connected to Secure Wi-Fi (Home Network or Hotspot Device):
   NOTE: The H/U clock must  be set correctly in order to check for available FOTA updates.
   1. 2.1) If necessary, set the clock via GPS signal (Navi-equipped models only) or by smartphone following steps from 1.1  or 1.2  above: "Navi/Radio internal clock settings"  .
   2. 2.2) Connect to the network.
   3. 2.3) Select "Settings" from H/U Home screen.
   4. 2.4) Make sure the "Wi-Fi" is displayed on the Settings > General screen.
   5. 2.5) Select the desired Wi-Fi device from the "Wi-Fi Settings" list.
   6. 2.6) Select "Connect" and input the password of the Wi-Fi device to be used. When a connection is established, the screen will display a Wi-Fi icon on top bar.
   7. 2.7) Perform Check for Available Update  : (same as 1.5  above).
   8. 2.8) Perform Software Update  : (same as 1.6  above).
   9. 2.9) Re-check Software version (same as Step 1  above) after update installation is complete.
   10. 2.10) Using the notes or photos collected at the start of this process in Step 2  , reset the customer's preset stations and volume settings.
   11. 2.11) Go to Home screen.
   12. 2.12) Turn the engine off and open the driver's door to turn the H/U off and complete the procedure.

WARRANTY/CLAIM INFORMATION

For vehicles within the Basic New Car Limited Warranty period or covered by an active Subaru Added Security Gold plan, this repair may be submitted using the following claim information:

Labor Description	Labor Operation #	Labor Time	Fail Code
S/WARE VERSION CHECK, LATEST VERSION ALREADY INSTALLED, UPDATE SUCCESSFUL BY FOTA	A031-271	0.3	ZTA-48
S/WARE VERSION CHECK, LATEST VERSION ALREADY INSTALLED, UPDATE DONE BY MOTA(1) OR USB, R&R H/U, RECORD SERIAL #	A031-272	0.7
S/WARE VERSION CHECK, S/WARE UPDATE REQUIRED, UPDATE SUCCESSFUL BY FOTA	A031-278	0.4
S/WARE VERSION CHECK, S/WARE UPDATE REQUIRED, FOTA UPDATE FAILS, UPDATE VIA USB, R&R H/U, RECORD SERIAL #	A031-288	1.3
(1) MOTA  : Map Over The Air Update will update the Map data ONLY. When performing the Map Download procedure (updates are downloaded to a USB drive then installed into the H/U), BOTH the Map data AND H/U software versions are "bundled" together and updated.

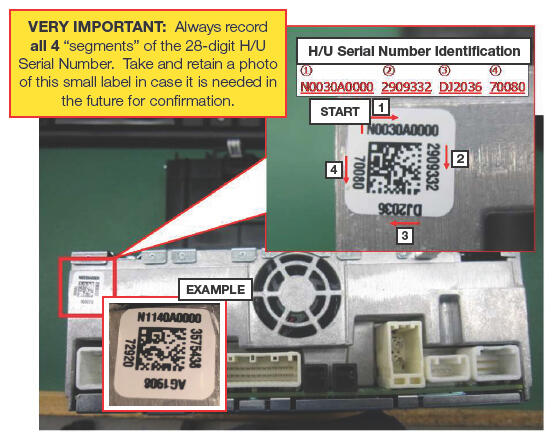

REMINDER:  The COMPLETE 28-digit serial number is required to be entered in the Miscellaneous Detail field during claim submission (no spaces or special characters).

IMPORTANT REMINDERS:

• SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
• Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
• Always refer to STIS for the latest service information before performing any repairs.

APPENDIX A

Harman 3.1 Software/Map Update Chronology

Release Date:	NEW H/U Version ID #:	Map Update Software ID #
7/1/2018	Rel4.18.11.50 Rel4.18.20.50 Rel_U1.18.20.60	Rel_U0.18.30.20(1)
12/5/2018	Rel_U1.18.38.50	n/a
3/18/2019	Rel_UA.19.01.70	Rel_UD.19.17.70(1) (Version 5.5)
8/16/2019	Rel_UE.19.22.70	Rel_UE.19.25.70(1)
12/30/2019	Rel_UA.19.36.70	Rel_UA.19.42.70(1) Rel_UF.20.28.70(1)
12/21/2020	Rel_UA.20.38.70	Rel_UA.20.41.70(1) Rel_UH.21.13.70(1) Rel_UA.21.41.70(1) Rel_UA.22.05.45(1)
7/27/2021	Rel_UH.20.52.70	Rel_UA.21.41.70(1) Rel_UA.22.05.45(1)
8/12/2022	Rel_UG.22.13.70	Rel_UG.22.39.70(1)
9/7/2023	Rel_UK.22.49.70	Rel_UL.23.13.70(1)
3/12/2024	REL_UK.23.16.70	REL_UK.23.42.70(1) REL_UM.24.08.70(1)
NOTE: (1) These Map Update Software I.D. numbers contain the same functional updates as the corresponding New H/U Version I.D. numbers.

APPENDIX B

Links to Customer self-install instructions for FOTA Customer Instructions will be added to the Subarunet Service Operations & Technical > Forms/Downloads page when they become available. Once the links are available and to enhance customer satisfaction, consider providing customers with a copy of the appropriate instructions for their audio or audio/navigation head unit along with access to your store's secure customer WiFi network. Doing so will enable customers to try performing the FOTA update on their own while at your retailer.

REMINDER:  Retailers performing these updates are to follow the Service Procedures outlined in this bulletin ONLY. Always follow the applicable service procedures as outlined in this and other Service Bulletins. The additional steps and requirements supplied in Service Bulletins support a Subaru Technician's proper diagnosis and repair of any customer concern.
