Cylinder Head

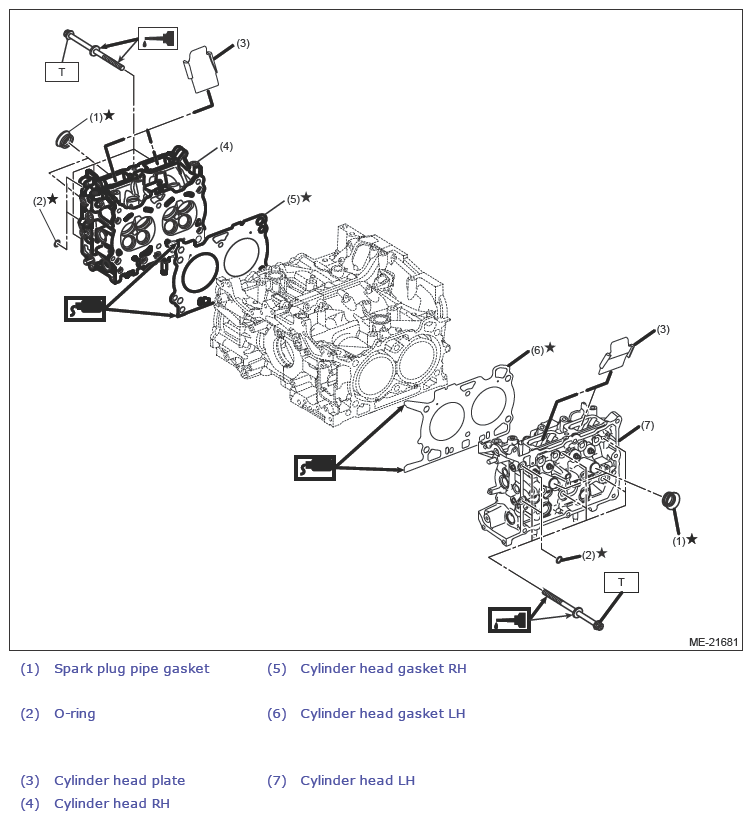

Fig 1: Cylinder Head Components Location

G13590559

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: Refer to MECHANICAL (H4DO)>CYLINDER HEAD>INSTALLATION .
