Horn System: Horn: Removal

  1. HORN ASSEMBLY HI
    1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
    2. Remove the air intake duct (rear). Refer to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>REMOVAL .
    3. Remove the bracket grille front.
      1. Apply the protective tapes on the bracket grille front and the grille assembly front LWR.
        G13224728Courtesy of SUBARU OF AMERICA, INC.
      2. Remove the clips, and remove the bracket grille front.

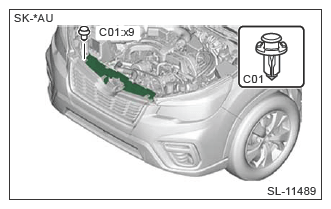

      G13226568Courtesy of SUBARU OF AMERICA, INC.
    4. Remove the horn assembly Hi.
      1. Disconnect the connector.
      2. Remove the bolt, and remove the horn assembly Hi.

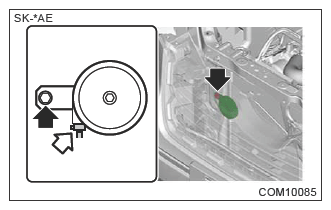

    G13226569Courtesy of SUBARU OF AMERICA, INC.
  2. HORN ASSEMBLY LO
    CAUTION: When removing the horn, do not remove the bumper face front. Bracket connection portion of the bumper face may become damaged.
    1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
    2. Lift up the vehicle.
    3. Remove the under cover front. Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
    4. Remove the screw and clips, and turn over the mud guard front on the right side.

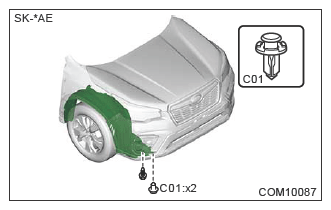

      G13226570Courtesy of SUBARU OF AMERICA, INC.
    5. Remove the horn assembly Lo.
      1. Disconnect the connector.
      2. Remove the bolt, and remove the horn assembly Lo.

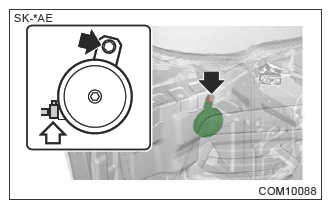

      G13226571Courtesy of SUBARU OF AMERICA, INC.
