Power Seat Switch

  1. Prior to starting work, check the following precautions. Refer to SEATS>GENERAL DESCRIPTION>CAUTION .
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the front seat from vehicle. Refer to SEATS>FRONT SEAT>REMOVAL .

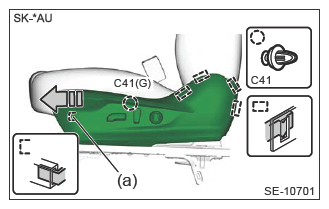

  4. Remove the cover hinge outside.
    1. Release it from the hinge base cover outside in the rear side.
    2. Release the clips.
    3. Pull forward to release the claw (a) and remove the cover hinge outside.
    G13226755Courtesy of SUBARU OF AMERICA, INC.

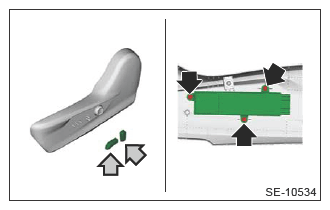

  5. Remove the power seat switch assembly.
    1. Remove the knob power seat.
    2. Remove the screws to remove the switch assembly power seat.
G13201377Courtesy of SUBARU OF AMERICA, INC.
