Diagnostic Procedure for Subaru Select Monitor Communication: Inspection
Detecting condition:
- Defective harness
- Power supply circuit malfunction
- Defective TPMS & keyless entry Control Module or keyless entry Control Module
- Defective CAN communication circuit
- Defective Subaru Select Monitor
Trouble symptom:
Not communicable with Subaru Select Monitor.

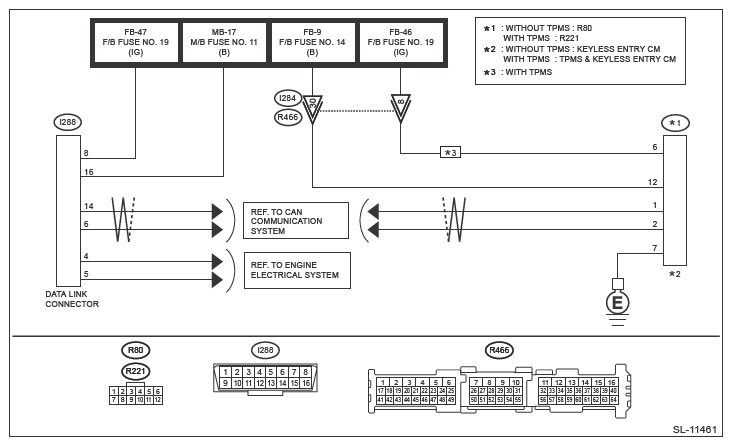

Wiring diagram:
- Keyless entry system Ref. to WIRING SYSTEM>KEYLESS ENTRY SYSTEM .
- CAN communication system Ref. to WIRING SYSTEM>CAN COMMUNICATION SYSTEM>WIRING DIAGRAM .
- CHECK POWER SUPPLY CIRCUIT.
Connect DST-i to data link connector.
Does DST-i turn ON?
Yes: Go to 4.
No: Go to 2.
- CHECK POWER SUPPLY CIRCUIT.
- Turn the ignition switch to ON.
- Using the tester, measure the voltage between data link connector and chassis ground.
Connector & terminal
(i288) No. 8 (+) - Chassis ground (-):
(i288) No. 16 (+) - Chassis ground (-):
Is the voltage 10 V or more?
Yes: Go to 3.
No: Repair the power supply circuit.
NOTE: In this case, repair the following item:- Open or ground short circuit of harness between battery and data link connector
- Blown out of fuse
- CHECK HARNESS BETWEEN DATA LINK CONNECTOR AND CHASSIS GROUND (OPEN).
- Turn the ignition switch to OFF.
- Using the tester, measure the resistance between data link connector and chassis ground.
Connector & terminal
(i288) No. 4 - Chassis ground:
(i288) No. 5 - Chassis ground:
Is the resistance less than 5 Ω?
Yes: Check for poor contact of the data link connector, and repair a fault, if any. When no fault is found. Go to 4.
No: Repair the harness and connector.
- CHECK SUBARU SELECT MONITOR.
- Connect the Subaru Select Monitor to a normal vehicle.
- Start the engine and establish communication between the Subaru Select Monitor and vehicle.
Is communication possible?
Yes: Go to 5.
No: Use another Subaru Select Monitor because the CAN communication circuit of the Subaru Select Monitor is faulty.
- CHECK LAN SYSTEM.
Perform the diagnosis for LAN system. Ref. to LAN SYSTEM (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .
Is LAN system OK?
Yes: Go to 6.
No: Perform the inspection according to the diagnosis for LAN system.
- CHECK CONNECTOR.
Check TPMS & keyless entry Control Module connector or keyless entry Control Module connector, data link connector or intermediate connector for poor contact.
Is the connector OK?
Yes: Go to 7.
No: Repair the connector.
- CHECK FUSE.
- Turn the ignition switch to OFF.
- Remove a fuse from the fuse box.
- Check the fuse. Ref. to SECURITY AND LOCKS>RELAY AND FUSE .
Is the fuse OK?
Yes: Go to 8.
No: Replace the fuse. If the replaced fuse blows out easily, repair the ground short circuit in harness between the TPMS & keyless entry Control Module or keyless entry Control Module and fuse.
- CHECK POWER SUPPLY CIRCUIT FOR TPMS & KEYLESS ENTRY CONTROL MODULE OR KEYLESS ENTRY CONTROL MODULE CONNECTOR (OPEN CIRCUIT).
- Disconnect the TPMS & keyless entry Control Module or keyless entry Control Module connector.
- Turn the ignition switch to ON.
- Measure the voltage between the TPMS & keyless entry Control Module or the keyless entry Control Module connector and chassis ground.
Connector & terminal
Without TPMS
(R80) No. 12 (+) - Chassis ground (-):
With TPMS
(R221) No. 6 (+) - Chassis ground (-):
(R221) No. 12 (+) - Chassis ground (-):
Is the voltage 10 V or more?
Yes: Go to 9.
No: Check for open or short circuit in the harness between the TPMS & keyless entry Control Module or keyless entry Control Module and fuses.
- CHECK GROUND CIRCUIT FOR TPMS & KEYLESS ENTRY CONTROL MODULE OR KEYLESS ENTRY CONTROL MODULE (OPEN CIRCUIT).
Measure the resistance in harness between TPMS & keyless entry Control Module or keyless entry Control Module connector and chassis ground.
Connector & terminal
Without TPMS
(R80) No. 7 - Chassis ground:
With TPMS
(R221) No. 7 - Chassis ground:
Is the resistance less than 1 Ω?
Yes: Check the connection between the data link connector and Subaru Select Monitor.
No: Repair the harness for ground line.
