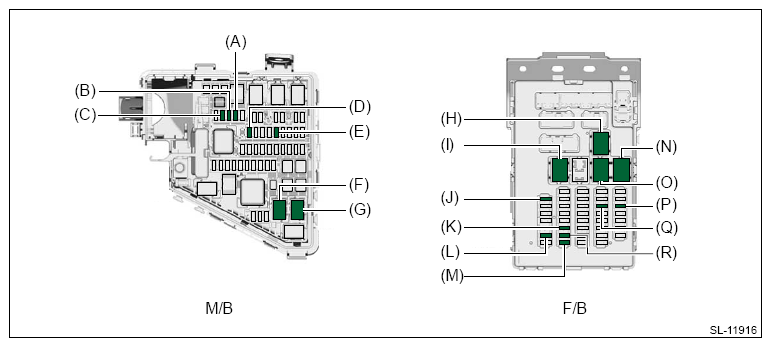

Relay And Fuse: Location
| Main fuse box (M/B) | Fuse 10 A (body integrated unit) | (A) |
| Fuse 10 A (body integrated unit) | (B) | |
| Fuse 10 A (body integrated unit) | (C) | |
| Fuse 20 A (body integrated unit, front lock relay, front unlock relay, rear gate unlock relay) | (D) | |
| Fuse 15 A (body integrated unit) | (E) | |
| Starter relay | (F) | |
| Starter cut relay | (G) | |
| Fuse & relay box (F/B) | IG 1 relay | (H) |
| IG 2 relay | (I) | |
| Fuse 15 A (starter relay, starter cut relay) | (J) | |
| Fuse 10 A (body integrated unit) | (K) | |
| Fuse 7.5 A (body integrated unit) | (L) | |
| Fuse 7.5 A (body integrated unit) | (M) | |
| Accessory relay 1 | (N) | |
| Accessory relay 2 | (O) | |
| Fuse 10 A (power rear gate Control Module, keyless entry Control Module) | (P) | |
| Fuse 7.5 A (steering lock Control Module) | (Q) | |
| Fuse 7.5 A (keyless access Control Module) | (R) |
NOTE:
For other related fuses, refer to WIRING SYSTEM>POWER SUPPLY CIRCUIT
.
