• Except For Model With Power Amplifier

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .

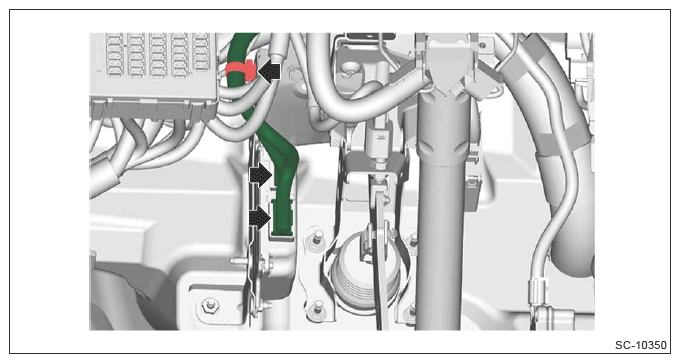

  2. Disconnect the connector from the Auto Start Stop DC/DC converter 1 and remove the clip.
    G13224913Courtesy of SUBARU OF AMERICA, INC.

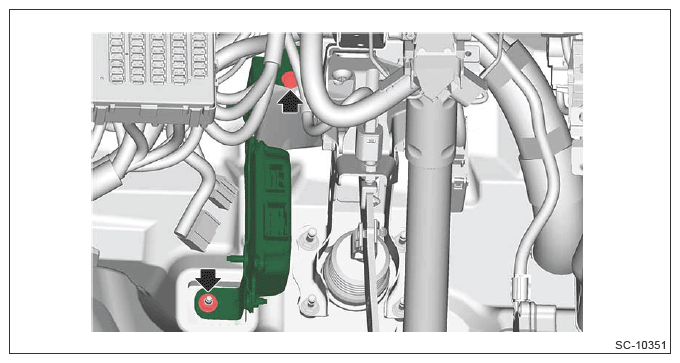

  3. Remove the Auto Start Stop DC/DC converter 1 from the vehicle.
    G13224914Courtesy of SUBARU OF AMERICA, INC.

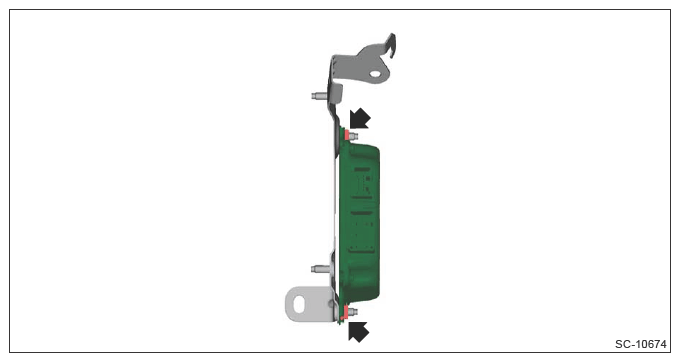

  4. Remove the Auto Start Stop DC/DC converter 1 from the bracket.
    G13591264Courtesy of SUBARU OF AMERICA, INC.
