Power Window Main Switch
- With off-delay function for driver's seat only

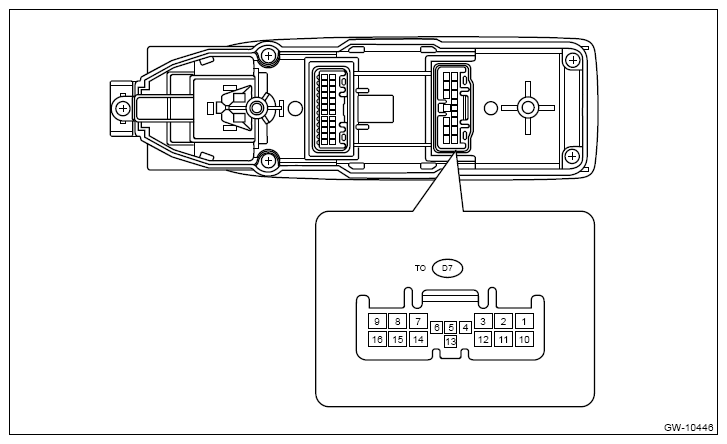

Terminal No. Contents Measuring condition Standard (D7) No. 1 Power window switch UP (rear seat RH) - - (D7) No. 2 Power window switch DOWN (rear seat RH) - - (D7) No. 3 - - - (D7) No. 4 - - - (D7) No. 5 - - - (D7) No. 6 - - - (D7) No. 7 ←→ Chassis ground GND Always Less than 1 Ω (D7) No. 8 Power window switch DOWN (rear seat LH) - - (D7) No. 9 Power window switch UP (rear seat LH) - - (D7) No. 10 ←→ Chassis ground Ignition power supply Always Battery voltage (D7) No. 11 Power window switch UP (passenger's seat) - - (D7) No. 12 Power window switch DOWN (passenger's seat) (D7) No. 13 LIN communication - - (D7) No. 14 Power window switch UP (driver's seat) - - (D7) No. 15 Power window switch DOWN (driver's seat) - - (D7) No. 16 ←→ Chassis ground Battery power supply Always Battery voltage - Front seats with off-delay function (without telematics)
Terminal No. Contents Measuring condition Standard (D7) No. 1 Power window switch UP (rear seat RH) - - (D7) No. 2 Power window switch DOWN (rear seat RH) - - (D7) No. 3 - - - (D7) No. 4 - - - (D7) No. 5 - - - (D7) No. 6 - - - (D7) No. 7 ←→ Chassis ground GND Always Less than 1 Ω (D7) No. 8 Power window switch DOWN (rear seat LH) - - (D7) No. 9 Power window switch UP (rear seat LH) - - (D7) No. 10 ←→ Chassis ground Battery power supply Always Battery voltage (D7) No. 11 Power window switch DOWN (driver's seat) - - (D7) No. 12 Power window switch UP (driver's seat) - - (D7) No. 13 LIN communication - - (D7) No. 14 - - - (D7) No. 15 - - - (D7) No. 16 ←→ Chassis ground Ignition power supply Always Battery voltage - With telematics
Terminal No. Contents Measuring condition Standard (D7) No. 1 - - - (D7) No. 2 - - - (D7) No. 3 - - - (D7) No. 4 - - - (D7) No. 5 - - - (D7) No. 6 - - - (D7) No. 7 ←→ Chassis ground GND Always Less than 1 Ω (D7) No. 8 - - - (D7) No. 9 - - - (D7) No. 10 ←→ Chassis ground Battery power supply Always Battery voltage (D7) No. 11 Power window switch DOWN (driver's seat) - - (D7) No. 12 Power window switch UP (driver's seat) - - (D7) No. 13 LIN communication - - (D7) No. 14 - - - (D7) No. 15 - - - (D7) No. 16 ←→ Chassis ground Ignition power supply Always Battery voltage
