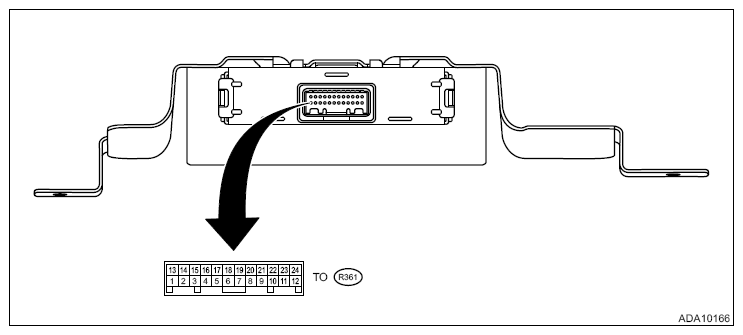

| (R361) No. 1 ←→ Chassis ground: |
Ignition power supply |
Ignition switch ON |
Battery voltage |
| (R361) No. 2 ←→ Chassis ground: |
Ground |
Always |
1 Ω or less |
| (R361) No. 3 |
Blank |
- |
- |
| (R361) No. 4 |
Main CAN-L |
- |
- |
| (R361) No. 5 |
Local CAN-H (stereo camera communication line) |
- |
- |
| (R361) No. 6 |
Blank |
- |
- |
| (R361) No. 7 |
Blank |
- |
- |
| (R361) No. 8 |
Sonar sensor communication line (left corner -) |
- |
- |
| (R361) No. 9 |
Sonar sensor communication line (right inner -) |
- |
- |
| (R361) No. 10 |
Blank |
- |
- |
| (R361) No. 11 |
Sonar sensor communication line (left inner +) |
- |
- |
| (R361) No. 12 |
Sonar sensor communication line (right corner +) |
- |
- |
| (R361) No. 13 ←→ Chassis ground: |
Battery power supply |
Always |
Battery voltage |
| (R361) No. 14 |
Blank |
- |
- |
| (R361) No. 15 |
Blank |
- |
- |
| (R361) No. 16 |
Main CAN-H |
- |
- |
| (R361) No. 17 |
Blank |
- |
- |
| (R361) No. 18 |
Local CAN-L (stereo camera communication line) |
- |
- |
| (R361) No. 19 |
Blank |
- |
- |
| (R361) No. 20 |
Blank |
- |
- |
| (R361) No. 21 |
Sonar sensor communication line (left inner -) |
- |
- |
| (R361) No. 22 |
Sonar sensor communication line (right corner -) |
- |
- |
| (R361) No. 23 |
Sonar sensor communication line (left corner +) |
- |
- |
| (R361) No. 24 |
Sonar sensor communication line (right inner +) |
- |
- |
