Oil Pan

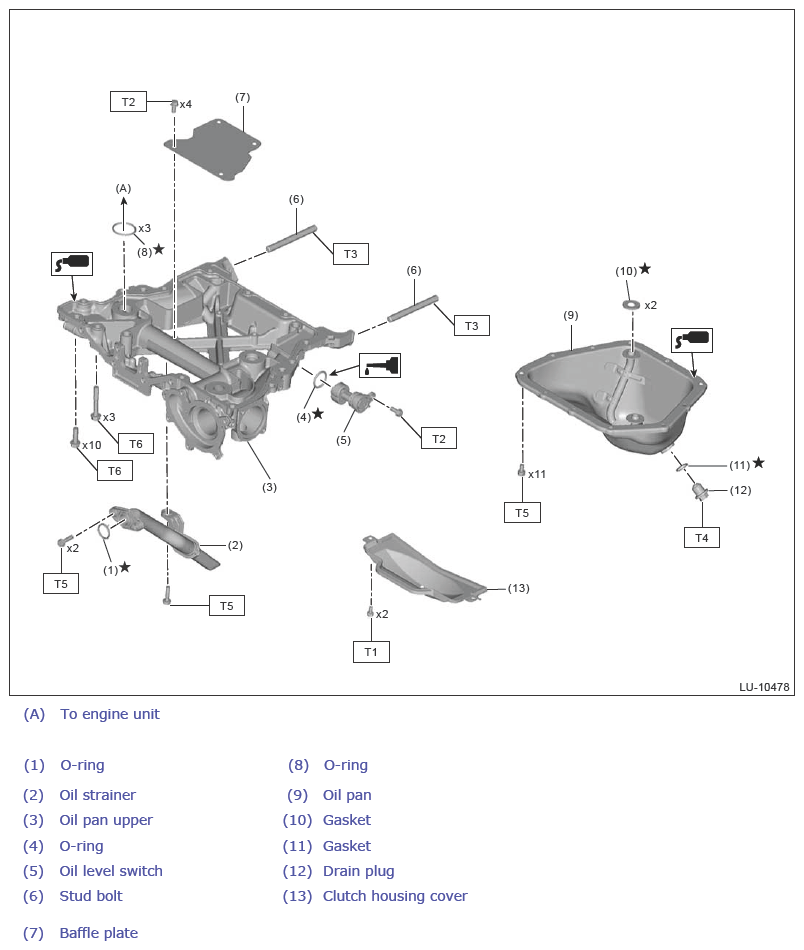

Fig 1: Oil Pan Components (With Torque Specifications) (Except For Hybrid Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 6.4 (0.7, 4.7)

T3: 10 (1.0, 7.4)

T4: 41.7 (4.3, 30.8)

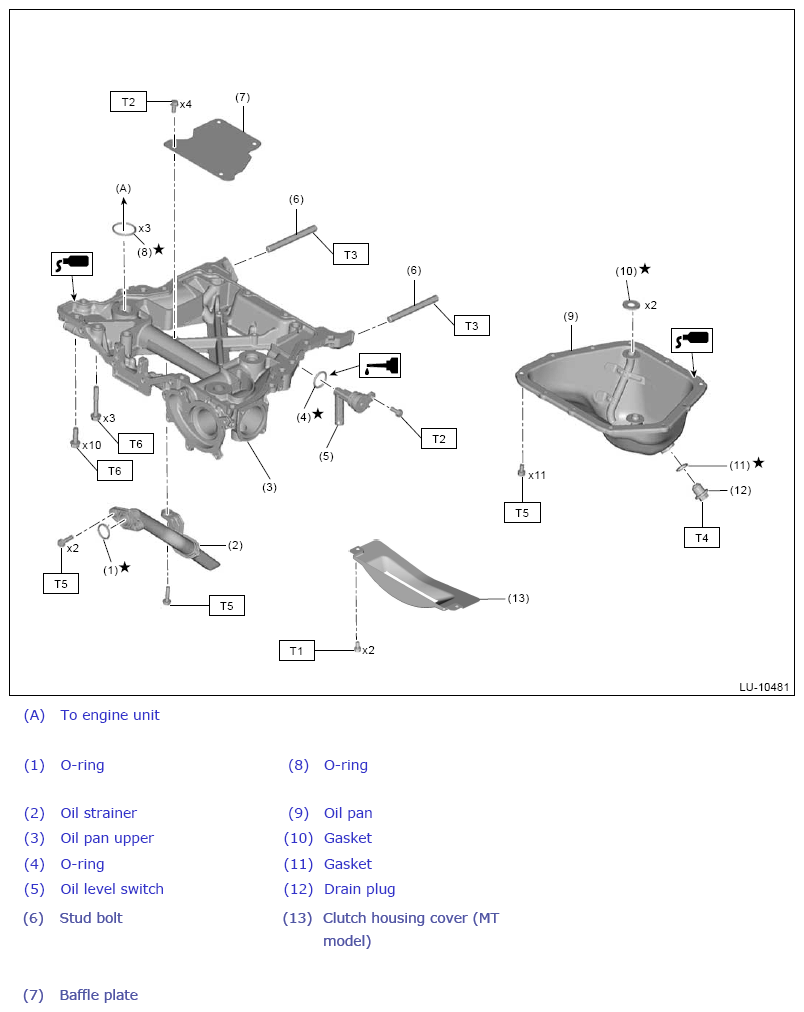

Fig 2: Oil Pan Components (With Torque Specifications) (Hybrid Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.6 (0.6, 4.1)

T2: 6.4 (0.7, 4.7)

T3: 10 (1.0, 7.4)

T4: 41.7 (4.3, 30.8)
