LEMON Manuals: Even more car manuals for everyone
Home >> Subaru >> 2020 >> Crosstrek Hybrid >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Diagnostics) (HEV) - Introduction >> Electrical Component Location >> Location >> Engine Unit

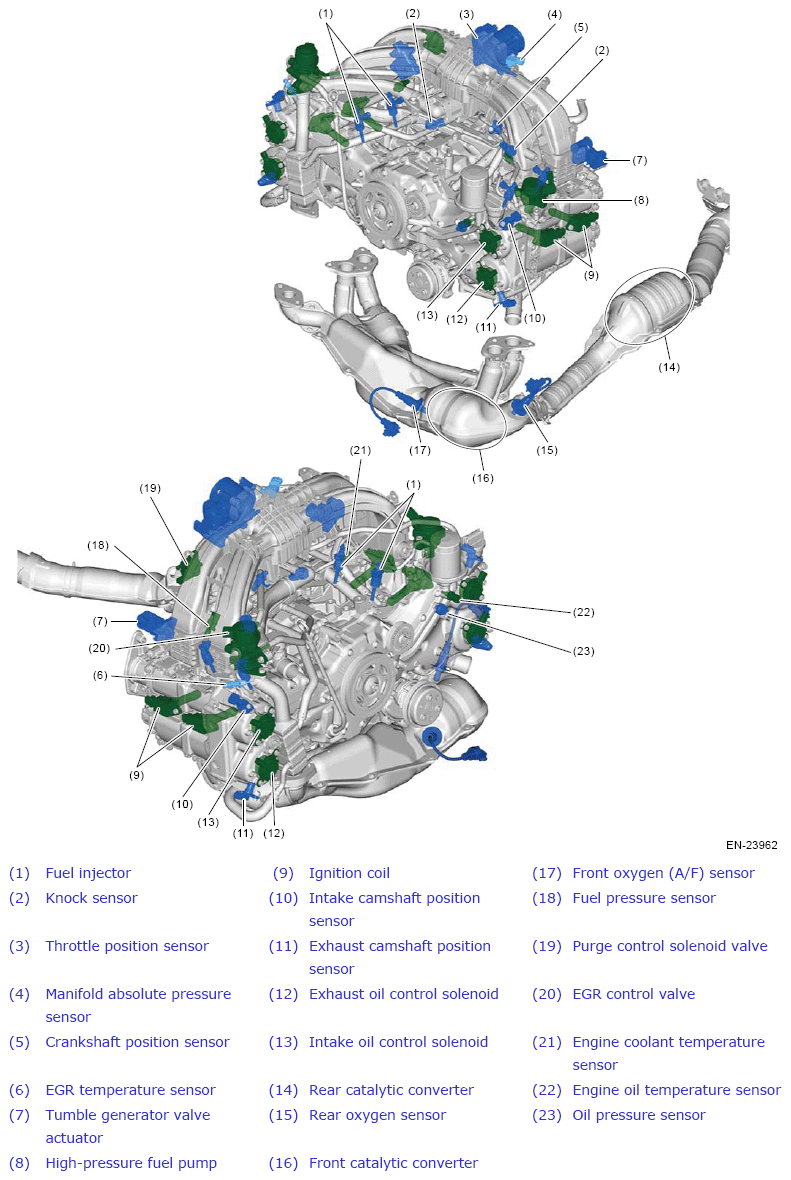

Engine Unit

G13615052Courtesy of SUBARU OF AMERICA, INC.
