Oil Pipe

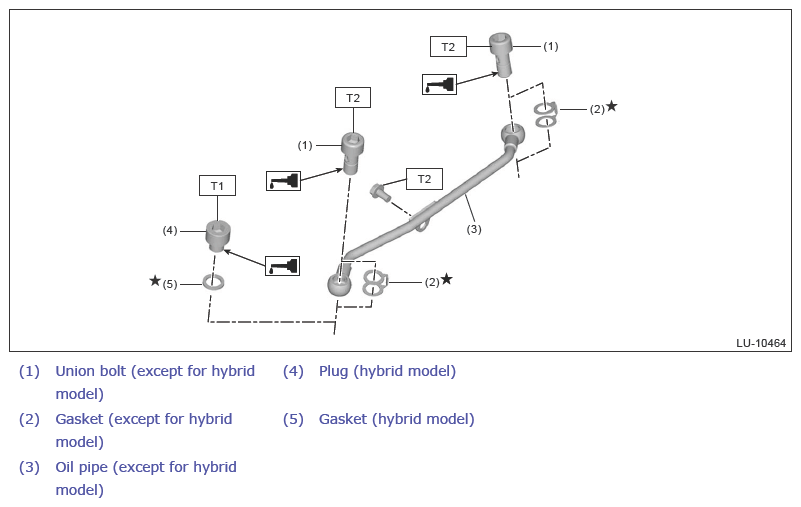

Fig 1: Oil Pipe Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.0, 14.8)

T2  : Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PIPE>INSTALLATION .
