6MT Model

1. Check for smooth operation to each position. Especially, shift to 5th → 6th and to Rev, and check for any stuck.
2. Check the slider returns to the original position by shifting to the Rev and then back in neutral while pulling up the slider.

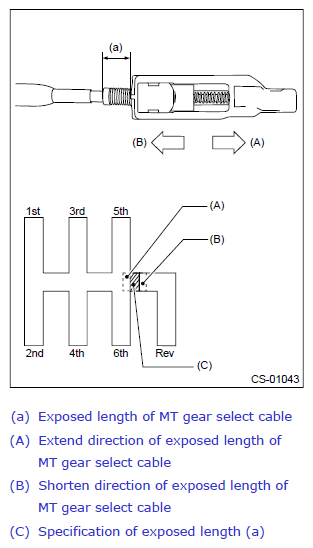

3. If the shifting operation is not smooth, readjust the exposed length (a) of MT gear select cable by referring to the following figure.

Courtesy of SUBARU OF AMERICA, INC.

• If 5th or 6th gear cannot be selected (pressing to the reverse lock bracket):

  → Extend the exposed length (a) of MT gear select cable.

• If the select lever cannot be operated along the cranking line when operating the lever from 4th to 5th:

→ Shorten the exposed length (a) of MT gear select cable.
