6MT Model

  1. Disconnect the ground terminal from 12V engine restart battery sensor. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the front exhaust pipe. Refer to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .
  4. Remove the center exhaust cover.
    G13230505Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the cable cover plate.
    G10267862Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the MT gear shift cable and MT gear select cable.
    CAUTION:
    • Be careful not to deform the cable inner.
    • Do not twist the cable inner excessively.
    • Do not apply excessive load while holding the part (a).
    G12392870Courtesy of SUBARU OF AMERICA, INC.

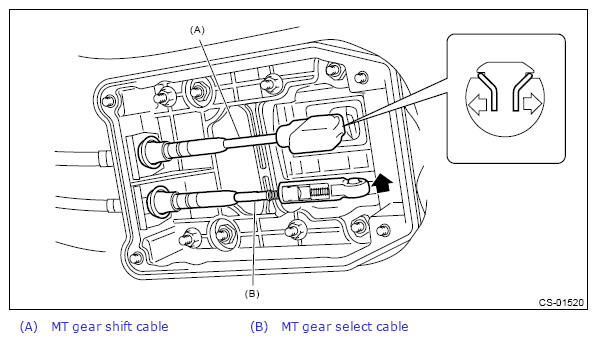

    1. Pull out down the MT gear shift cable to spread the spring.
    2. Push the MT gear select cable in the direction of arrow, and remove it.
    G13602934Courtesy of SUBARU OF AMERICA, INC.

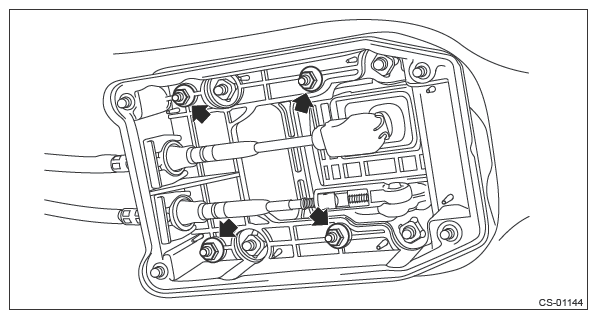

  7. Remove the cable cover assembly.
    G13602935Courtesy of SUBARU OF AMERICA, INC.
  8. Lower the vehicle.
  9. Remove the gear shift knob and remove the front console panel. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  10. Remove the panel center LWR LH and RH. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  11. Remove the harness clamp.
  12. Remove the gear shift lever assembly.
NOTE: The MT gear shift lever cannot be disassembled.
G09481214Courtesy of SUBARU OF AMERICA, INC.
