MT Gear Shift Cable: Removal

  1. Disconnect the ground terminal from 12V engine restart battery sensor. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the front exhaust pipe. Refer to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .
  4. Remove the center exhaust cover.
    G13230505Courtesy of SUBARU OF AMERICA, INC.

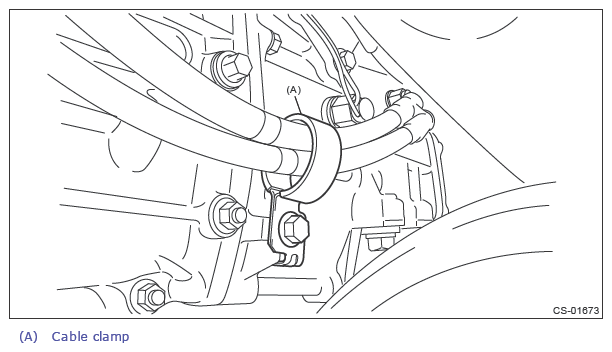

  5. Remove the cable clamp.
    G13602967Courtesy of SUBARU OF AMERICA, INC.

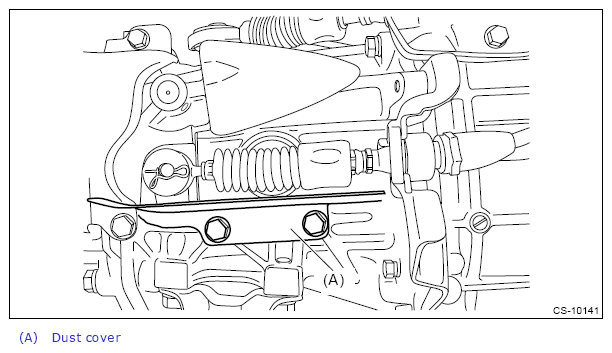

  6. Remove the dust cover.
    G13602968Courtesy of SUBARU OF AMERICA, INC.

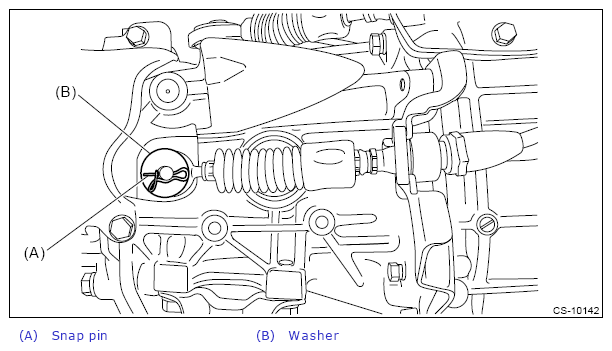

  7. Remove the snap pin and washer.
    G13602969Courtesy of SUBARU OF AMERICA, INC.

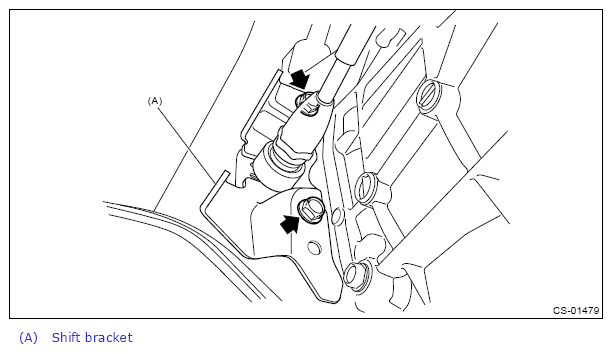

  8. Remove the bolts holding the shift bracket.
    G13602970Courtesy of SUBARU OF AMERICA, INC.

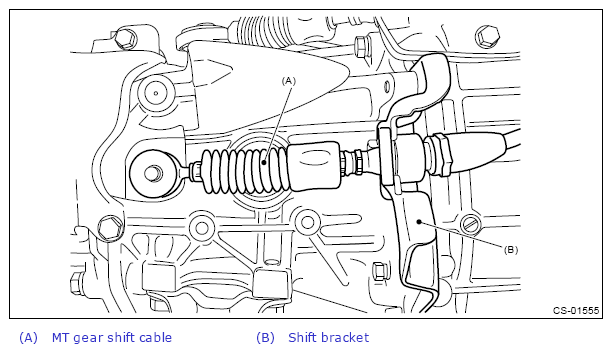

  9. Remove the shift bracket together with the MT gear shift cable.
    CAUTION: Do not apply excessive load while holding the part (a).
    G12392911Courtesy of SUBARU OF AMERICA, INC.
    G13602972Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the cable cover plate.
    G10267862Courtesy of SUBARU OF AMERICA, INC.
  11. Disconnect the MT gear shift cable.
    CAUTION:
    • Be careful not to deform the cable inner.
    • Do not apply excessive load while holding the part (a).
    G12392914Courtesy of SUBARU OF AMERICA, INC.

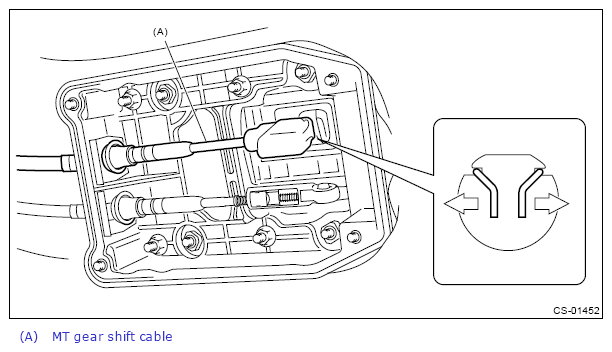

    NOTE: Pull out down the MT gear shift cable to spread the spring.
    G13602975Courtesy of SUBARU OF AMERICA, INC.

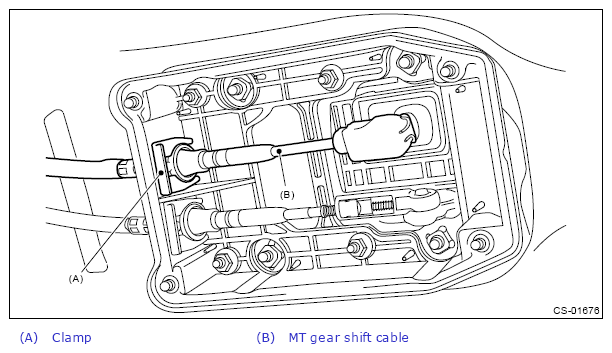

  12. Remove the clamp.
    G13602976Courtesy of SUBARU OF AMERICA, INC.

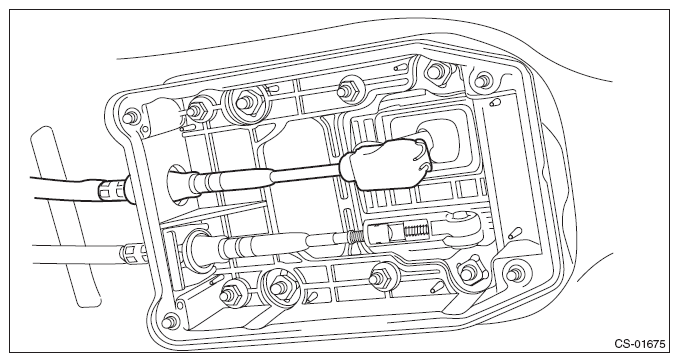

  13. Pull out the MT gear shift cable.
CAUTION:
  • Do not bend MT gear shift cable at a sharp angle.
  • Do not twist the cable inner excessively.
G09481231Courtesy of SUBARU OF AMERICA, INC.
